• Material: hardened steel
• Hardened 680 +80 HV30; hardening depth: 0,5 + 0,3
• Reduced-width jaws, 90 mm
• Ground and polished clamping surfaces
• Pull-down with ground and polished spring leaves for unmachined and pre-machined clamping surfaces
• Jaw can be used with or without spring leaves
• Spring leaves plugged with 1-Click
• High clamping accuracy for parallel and accurate angle machining
• Threaded holes for screw-on parallels
• Click system on the high side

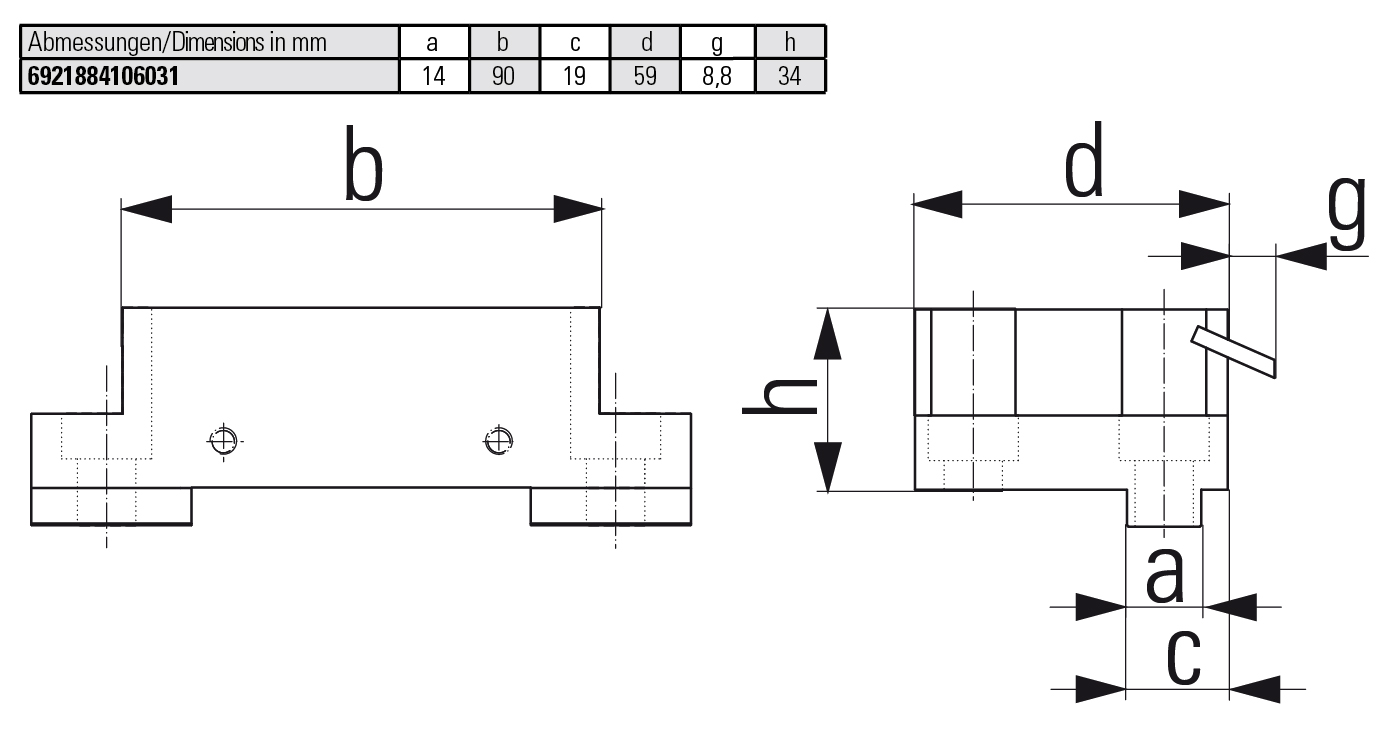

Dimensions/mm - a

14

Dimensions/mm - b

90

Dimensions/mm - c

19

Dimensions/mm - d

59

Dimensions/mm - g

8,8

Dimensions/mm - h

34

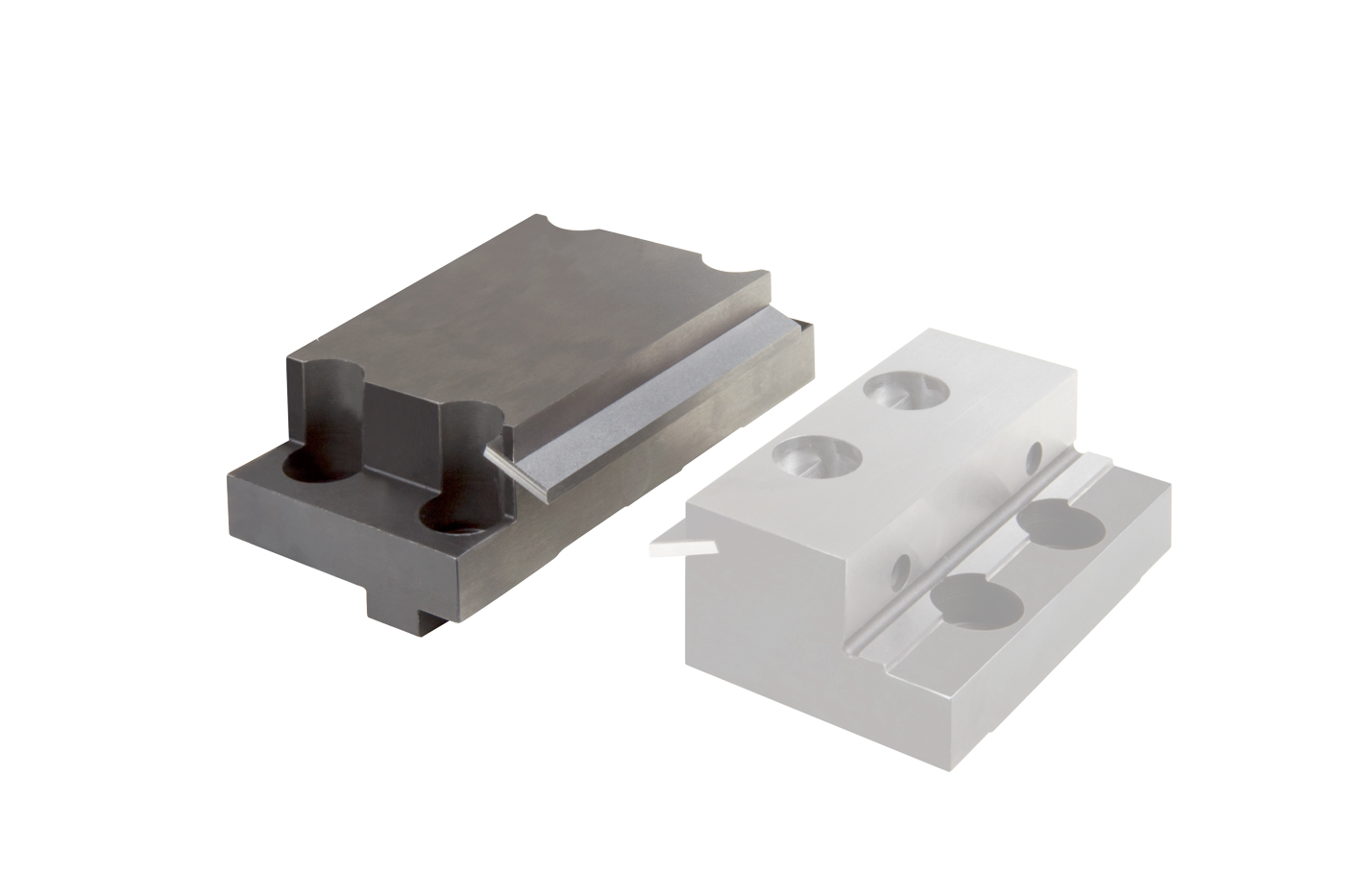

1x Universal pull-down jaw fixed
2x Cylinder head screws DIN 912 M10x20
2x Cylinder head screws DIN 912 M10x30
