Product features

• Mounting via side clamps or locating holes Ø 25H6 M10 inside micrometre 200 mm ± 0,01 mm
• We recommend 6 side clamps for securing on the machine table

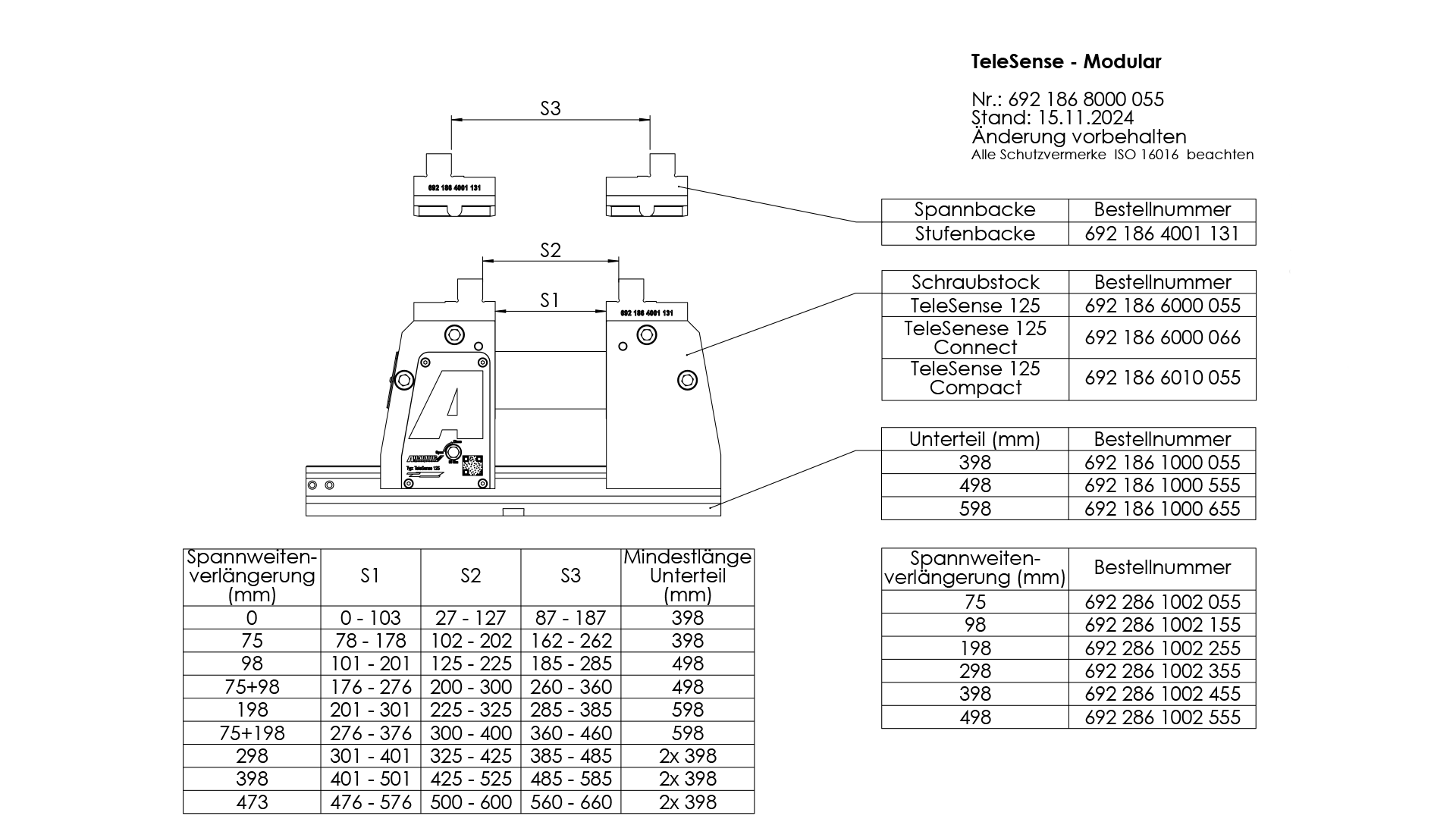

The TeleSense 125 can be assembled modularly or ordered as a predefined set.

The main components are:

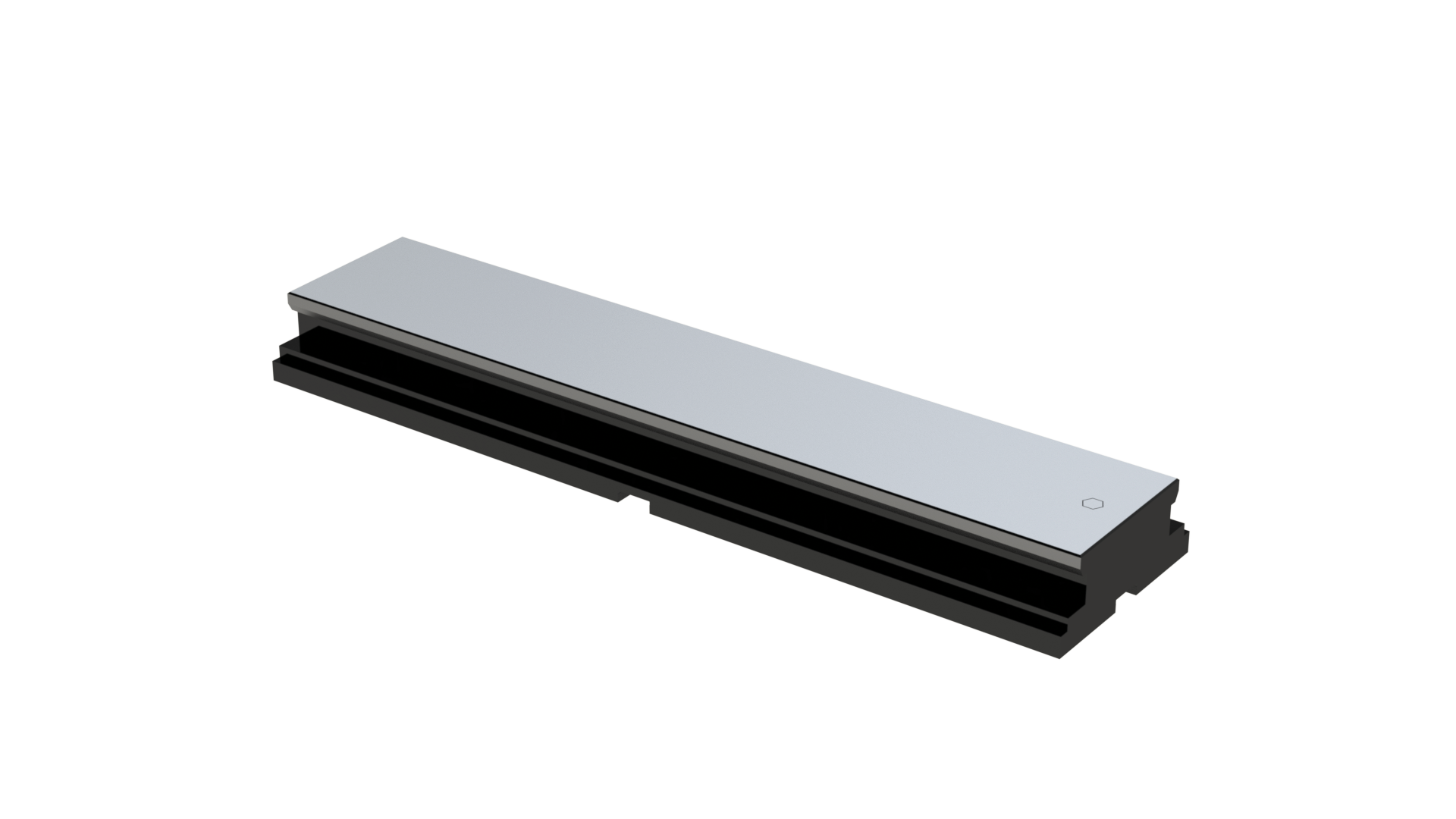

• Base part (length 400, 500 or 600)
• Clamping unit (version H165, H187 or H187 Connect). The clamping unit consists of two jaw supports and the spindle
• xtension L75 and/or L98

TeleSense 125 L500 is available in the following sets:

• TeleSense 125 - L500 (Set)
• TeleSense 125 Connect - L500 (Set)
• TeleSense 125 Compact - L500 (Set)

1x Base part L500
