Product features:

• Standard with mounting holes for zero point clamping system, Pitch 200
  Click for more technical informations
• The centre is adjustable. The position of the workpiece stays within set boundaries.
• Repeating accuracy ± 0,01 mm for rectangular workpieces
• Guides ground, polished and paired
• Clamping range presetting via adjustment of clamping jaws along transverse slots of spindle nuts
• Moulding and clamping in a single step, directly in the work area – no auxiliary aids required
• Use with a torque wrench – max. 70 Nm
• Fully enclosed and maintenance-free high-pressure spindle – high chip protection, minimum cleaning requirements, constant clamping forces up to 40 kN
• Fixing via the hole grid on both sides or alternative with side clamps



• Possible zero point clamping bolts

max. torque in Nm

70

max. clamping force in kN

40

min. Clamping range/mm

0

max. Clamping range/mm

256

Workpiece

Raw parts, Pre-machined parts

Jaw width/mm

125

Version

Mechanical

• 1 high-pressure vice without jaws
• 2 combination wrenches
• 6 fastening screws, M12 x 35 mm
• 1 wrench socket

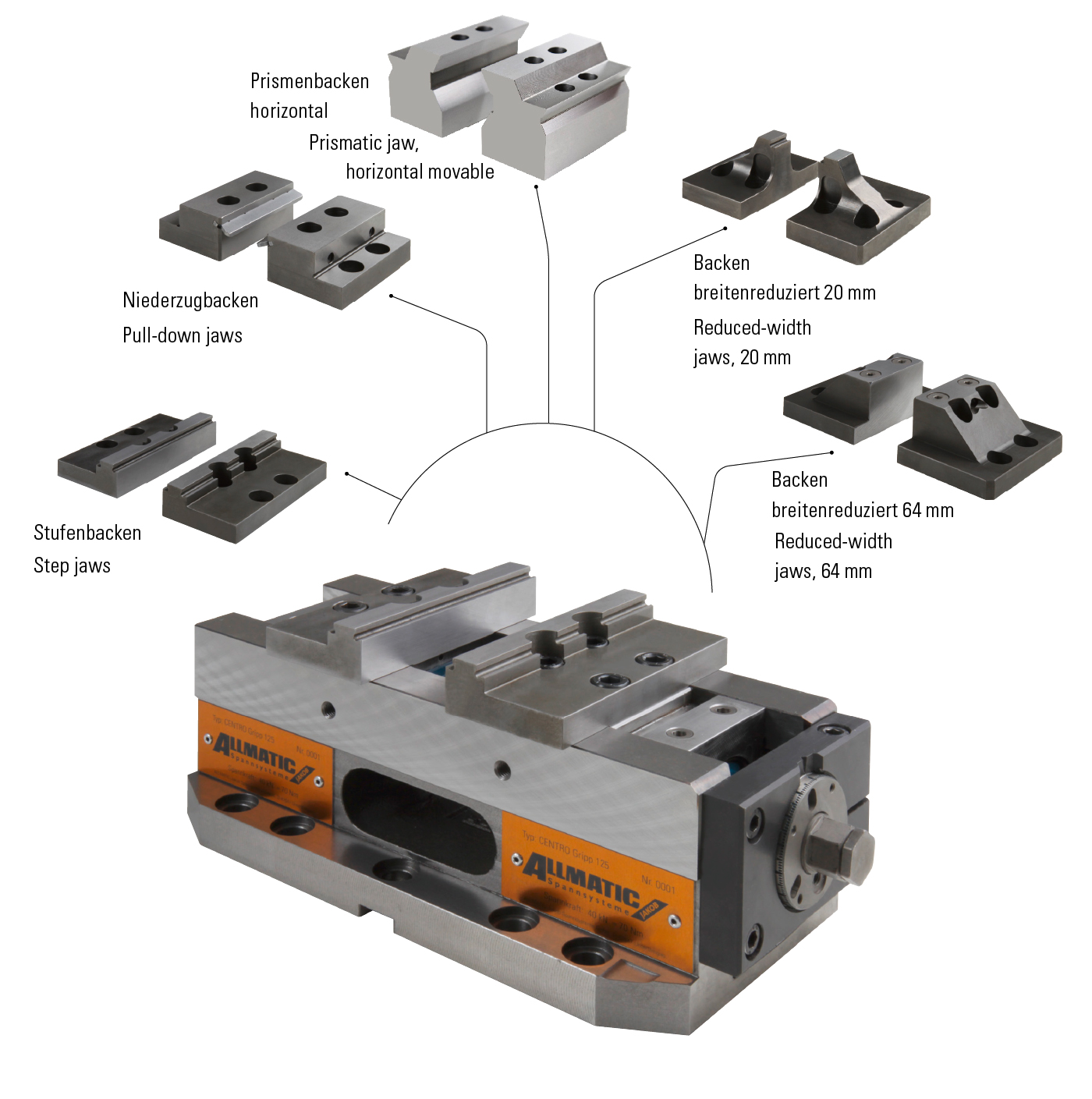

  (Please order clamping jaws separately)
