  • Clamping force: max. 16 kN with 20 Nm
  • Gearing 1,5 mm
  • Parallelism: ± 0,02 mm
  • Base part: 500 mm
  • Surface hardened to 60 HRC
  • Functional surfaces and gearing ground

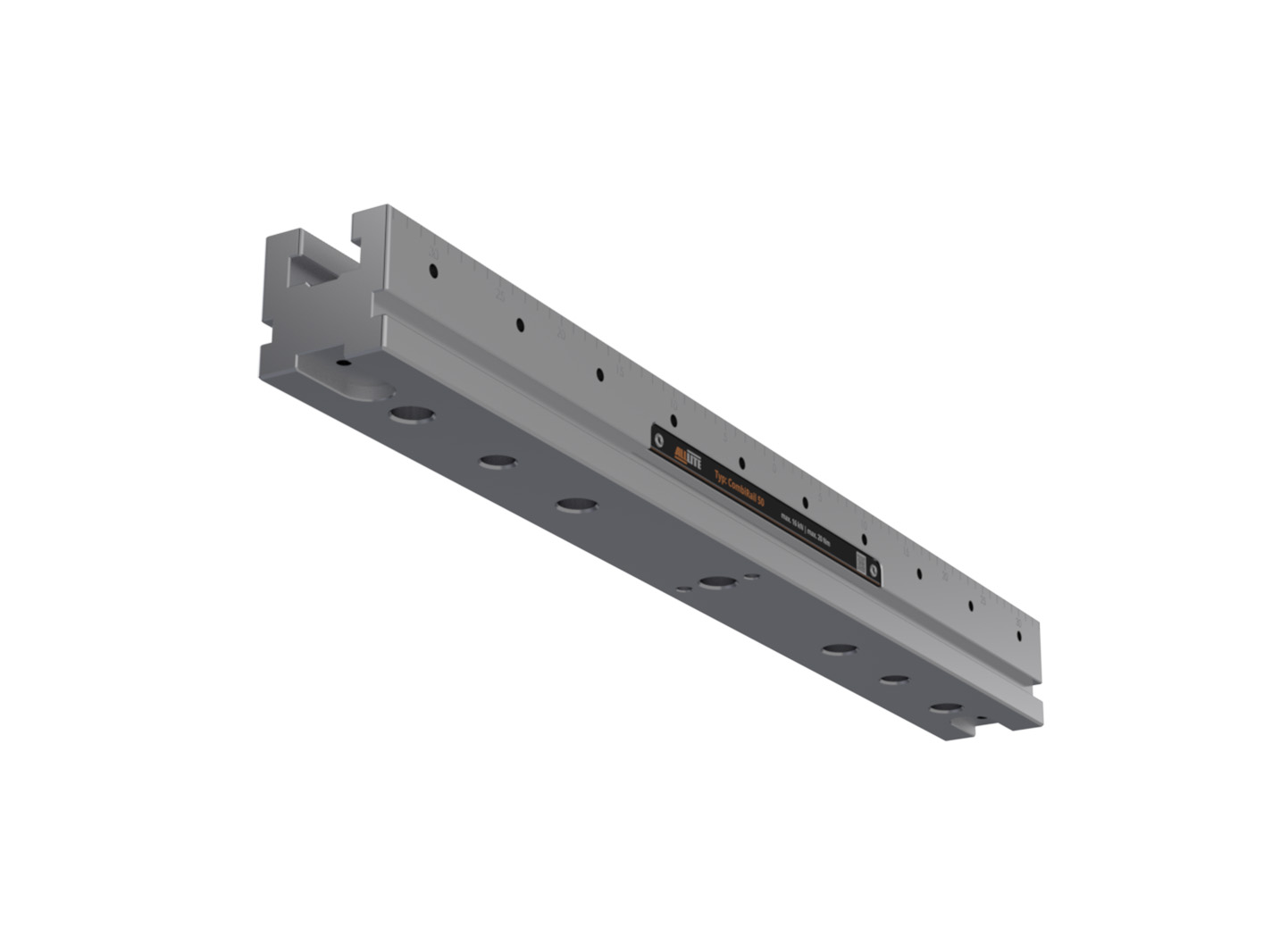

  • Mounting (ø14 mm) and fixing holes (Ø12 H7) in the base part for mounting on the machine table
  • Incl. holes for workpiece stop M6
Jaw width/mm
50
Length in mm
500
max. Clamping range/mm
416

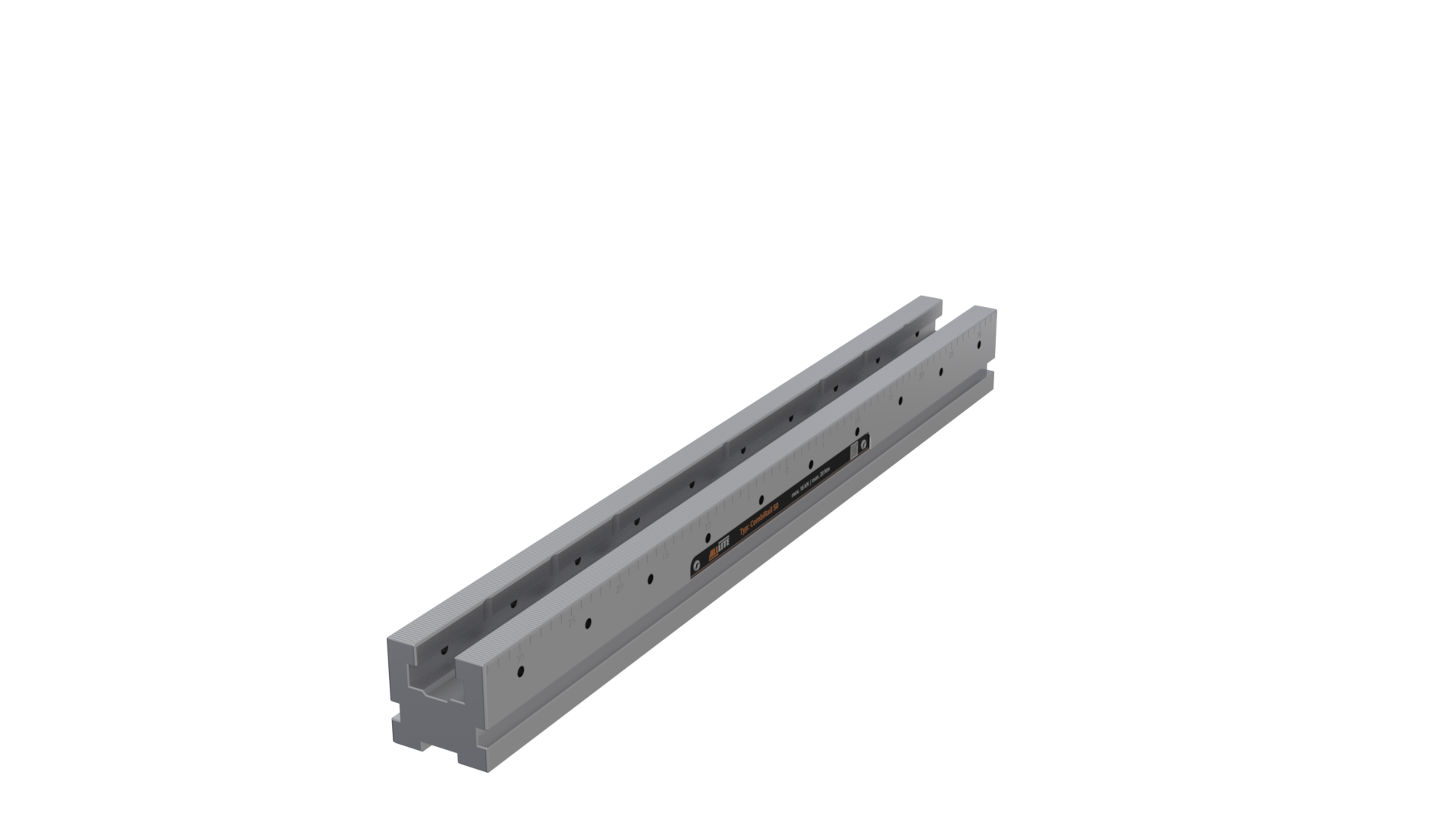

1x CombiRail 50 L500 without jaws
1x Quick-Start-Guide

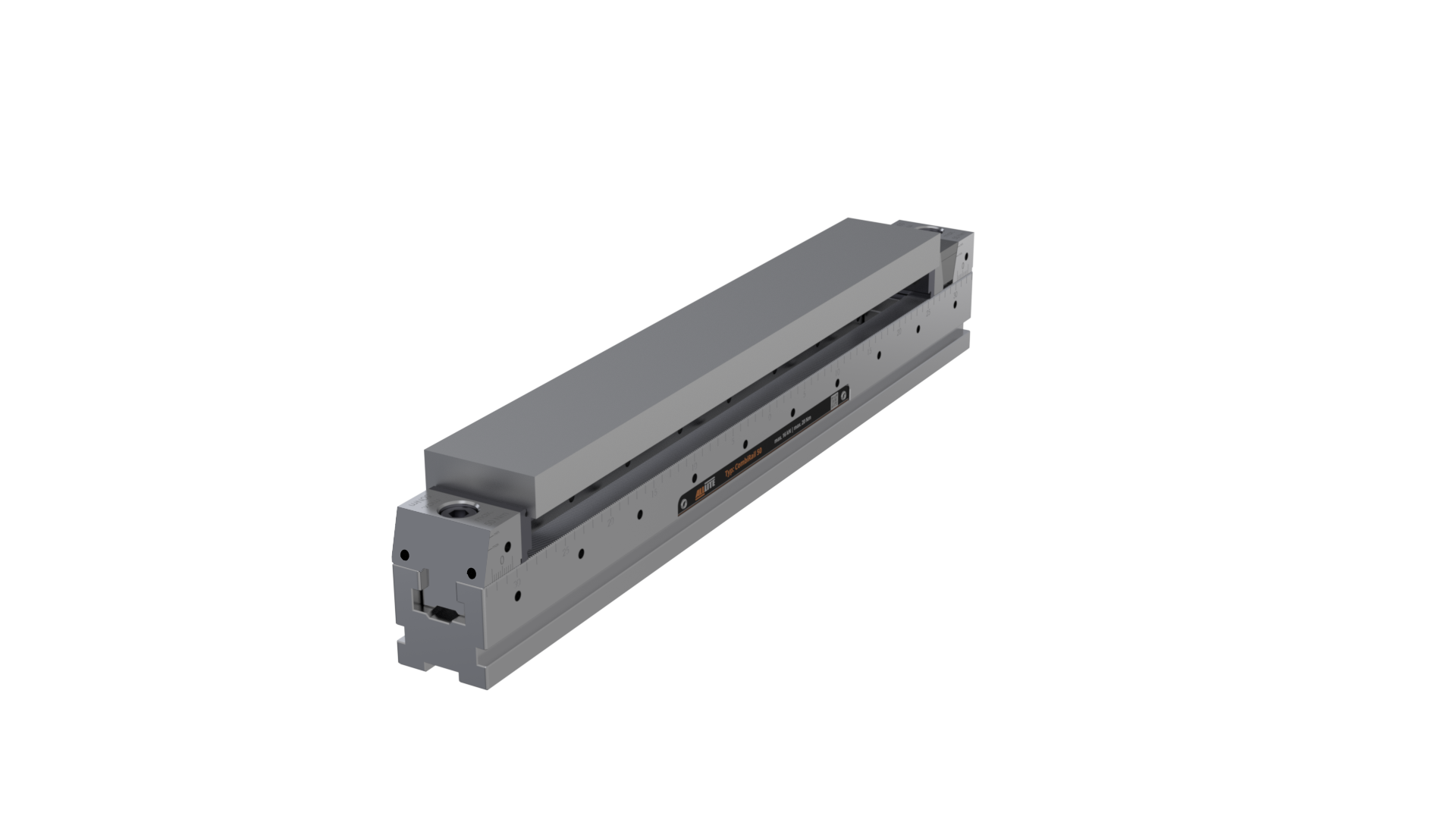

CombiRail 50 L500

Article number: 6921328000555
Alllite
Ideal for the production of higher quantities; Clamping stations can be flexibly adjusted according to the size of the workpieces; Can also be mounted vertically on tower
local_shipping Available
Weight: 7.1 kg
To get the article price and the function for adding the article to the shopping cart, please register or log in
- +
To cart
shopping_cart
help_outline Question on article
Recommend
playlist_add_check Add to notice list (please log in)
More Information arrow_downward
Matching Accessories arrow_downward
More Information arrow_downward
Matching Accessories arrow_downward
Suitable accessories
Extend this product with ALLMATIC accessories. Simply enter the desired number of individual accessory items and add them to the shopping cart.

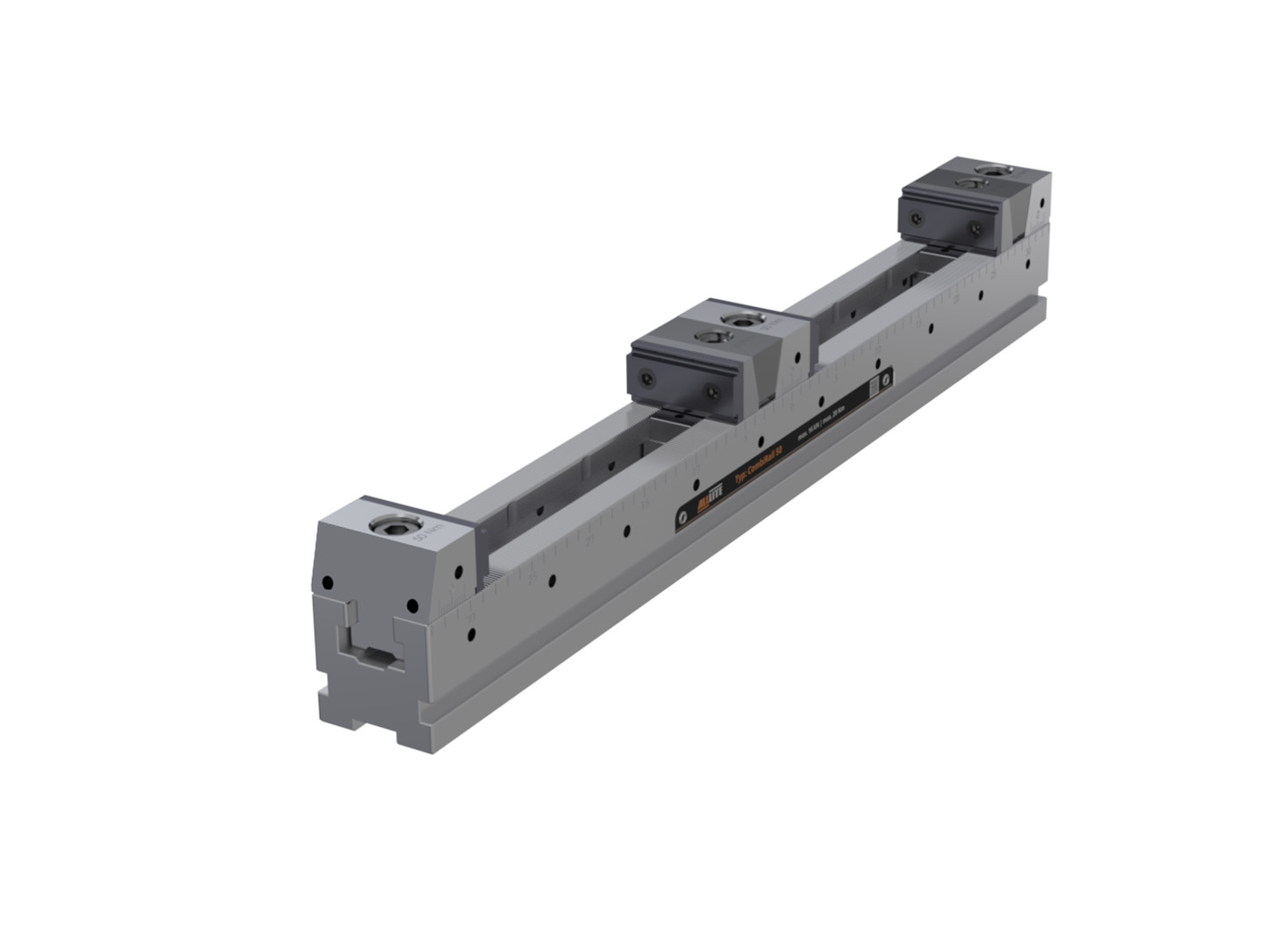

Fixed jaw b50

Article number: 6921324006031 Backen 50
Please register/login for article price Weight: 1.1 kg
- +

Wedge jaw b50

Article number: 6921324002031 Backen 50
Please register/login for article price Weight: 1.1 kg
- +

Floating jaw b50

Article number: 6921324010031 Backen 50
Please register/login for article price Weight: 1.1 kg
- +

Gripp-strip b50 reversible (pair)

Article number: 6921324010131
Please register/login for article price Weight: 0.8 kg
- +

Workpiece stop mechanical L58 M6

Article number: 6921325650031
Please register/login for article price Weight: 1.5 kg
- +

fitting bolt d12/M12 (for base part)

Article number: 8006501245000
Please register/login for article price Weight: 0.1 kg
- +
