  • Clamping force: max. 38 kN with 60 Nm
  • Gearing 2 mm
  • Parallelism: ± 0,02 mm
  • Base part: 700 mm
  • Surface hardened to 60 HRC
  • Functional surfaces and gearing ground

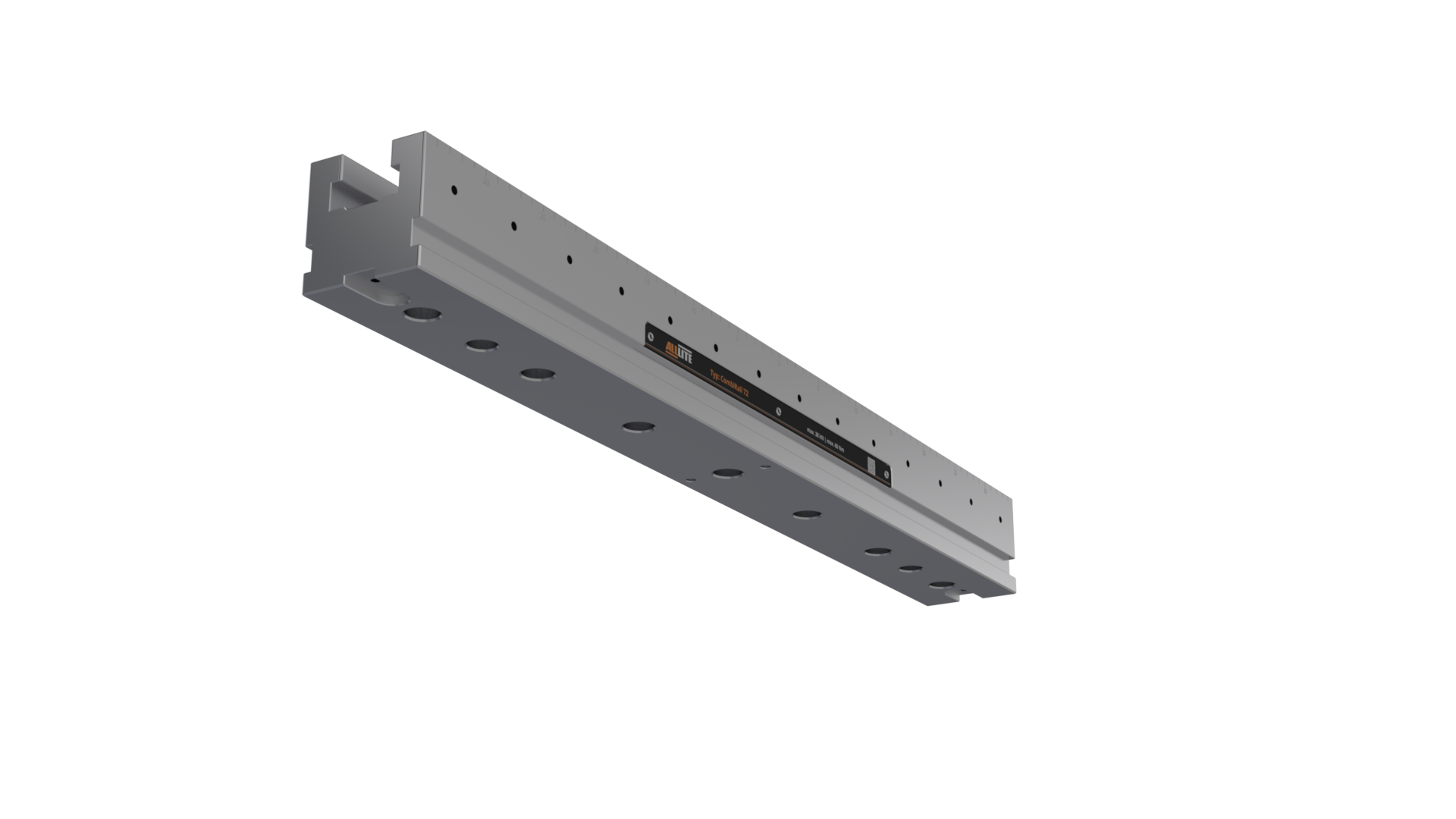

  • Mounting (ø18 mm) and fixing holes (16H7) in the base part for mounting on the machine table
  • Incl. holes for workpiece stop M6
Jaw width/mm
72
Length in mm
700
max. Clamping range/mm
565
1x CombiRail 72 L700 without jaws
1x Quick-Start-Guide

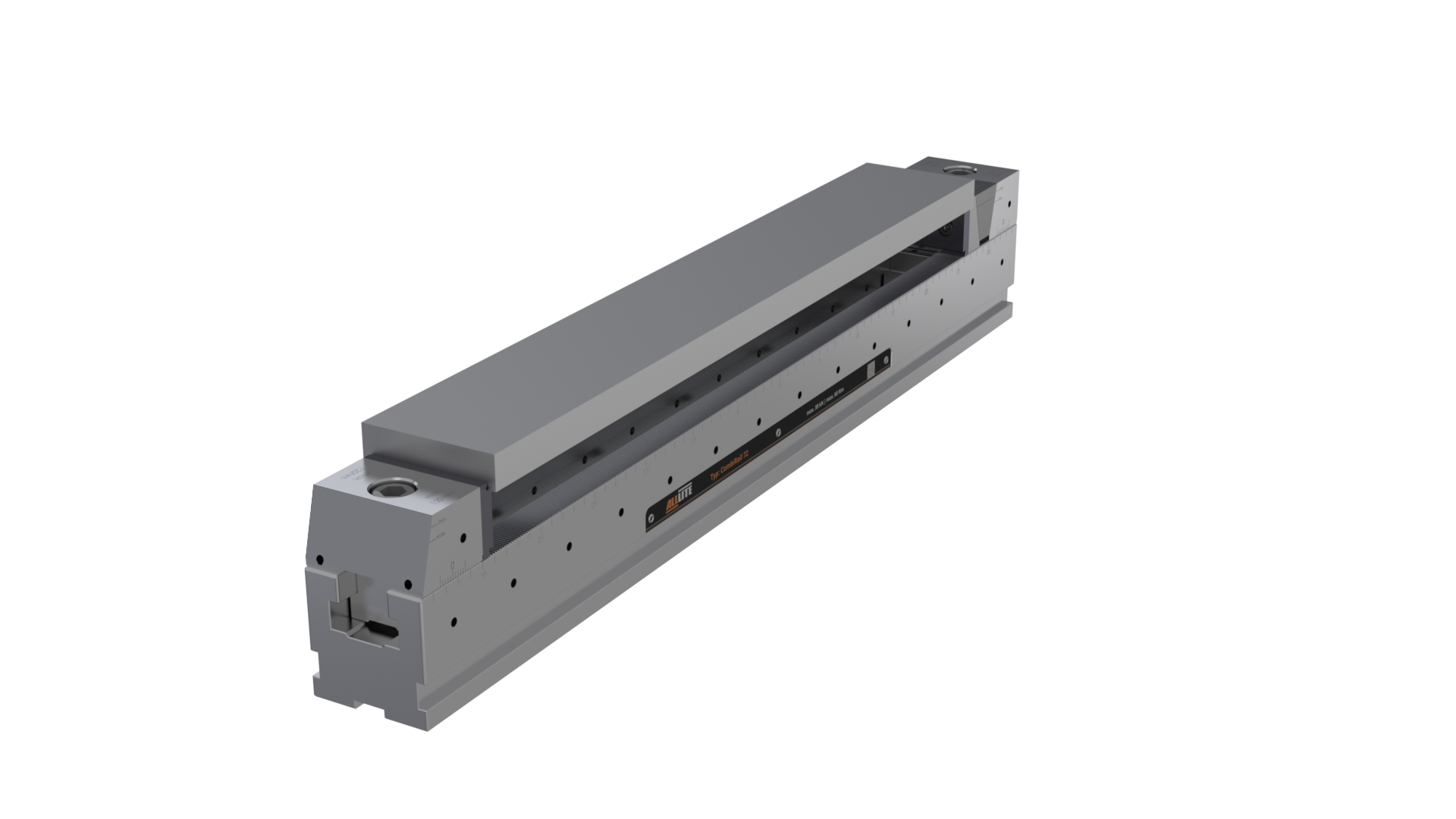

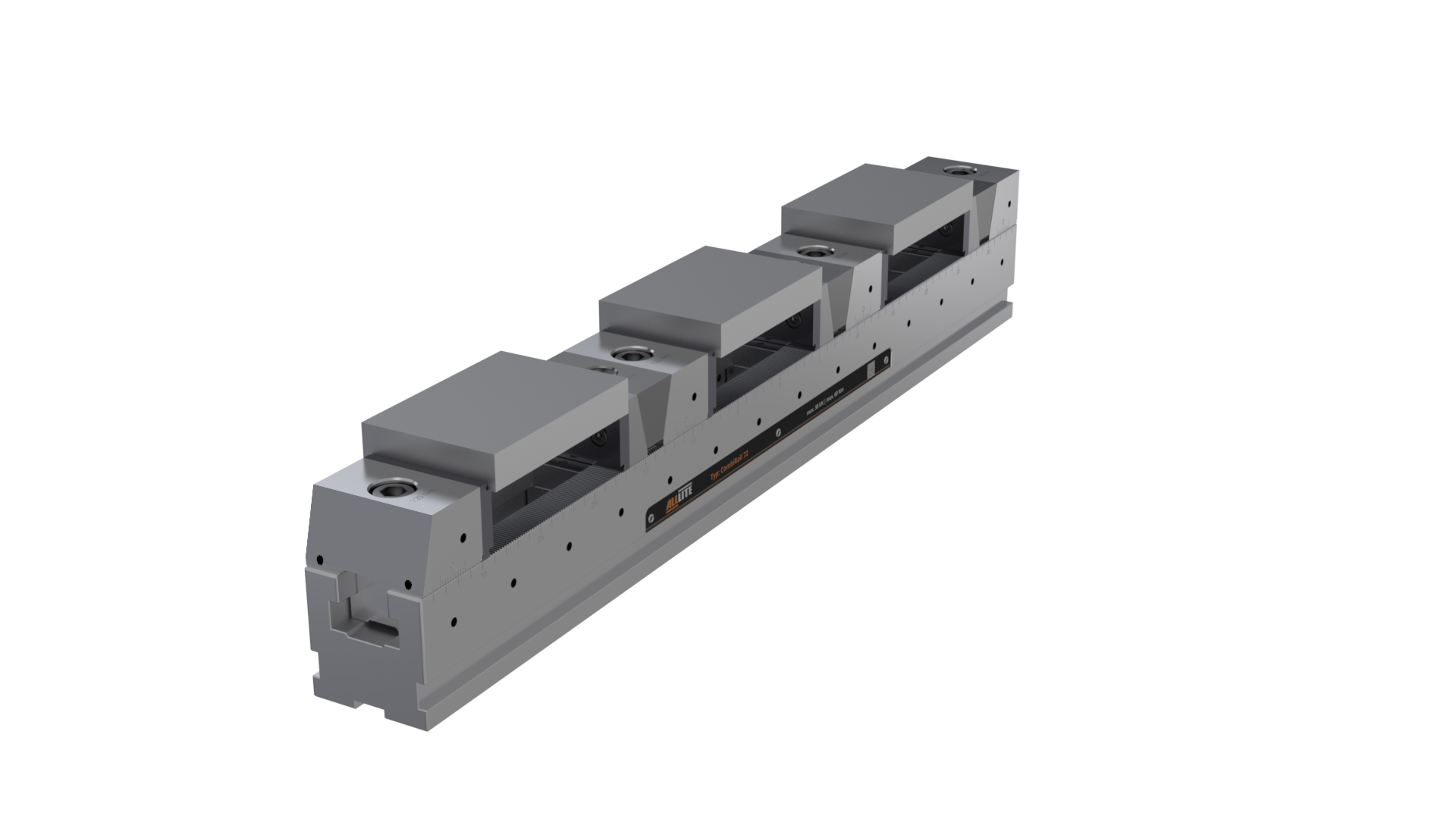

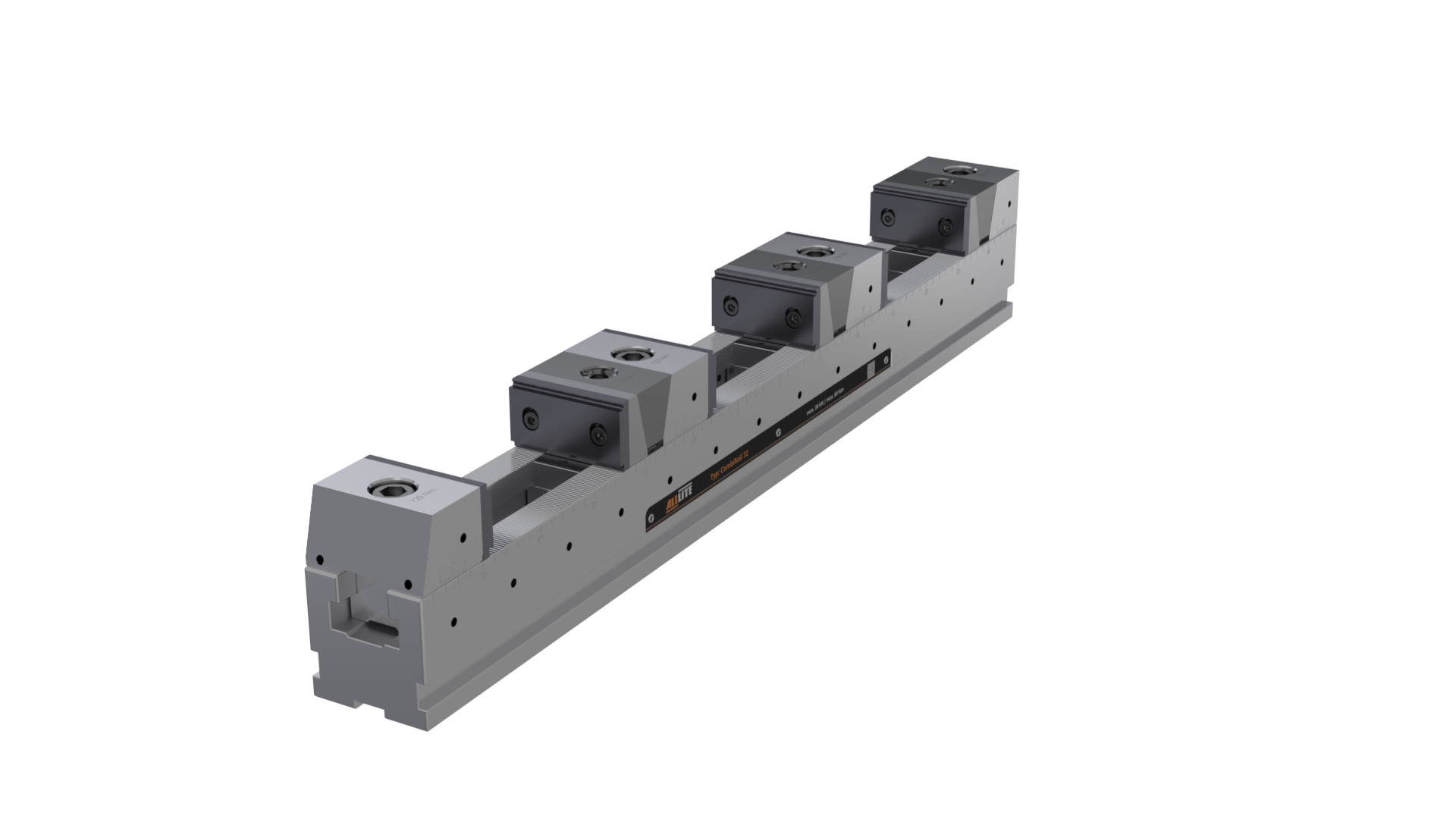

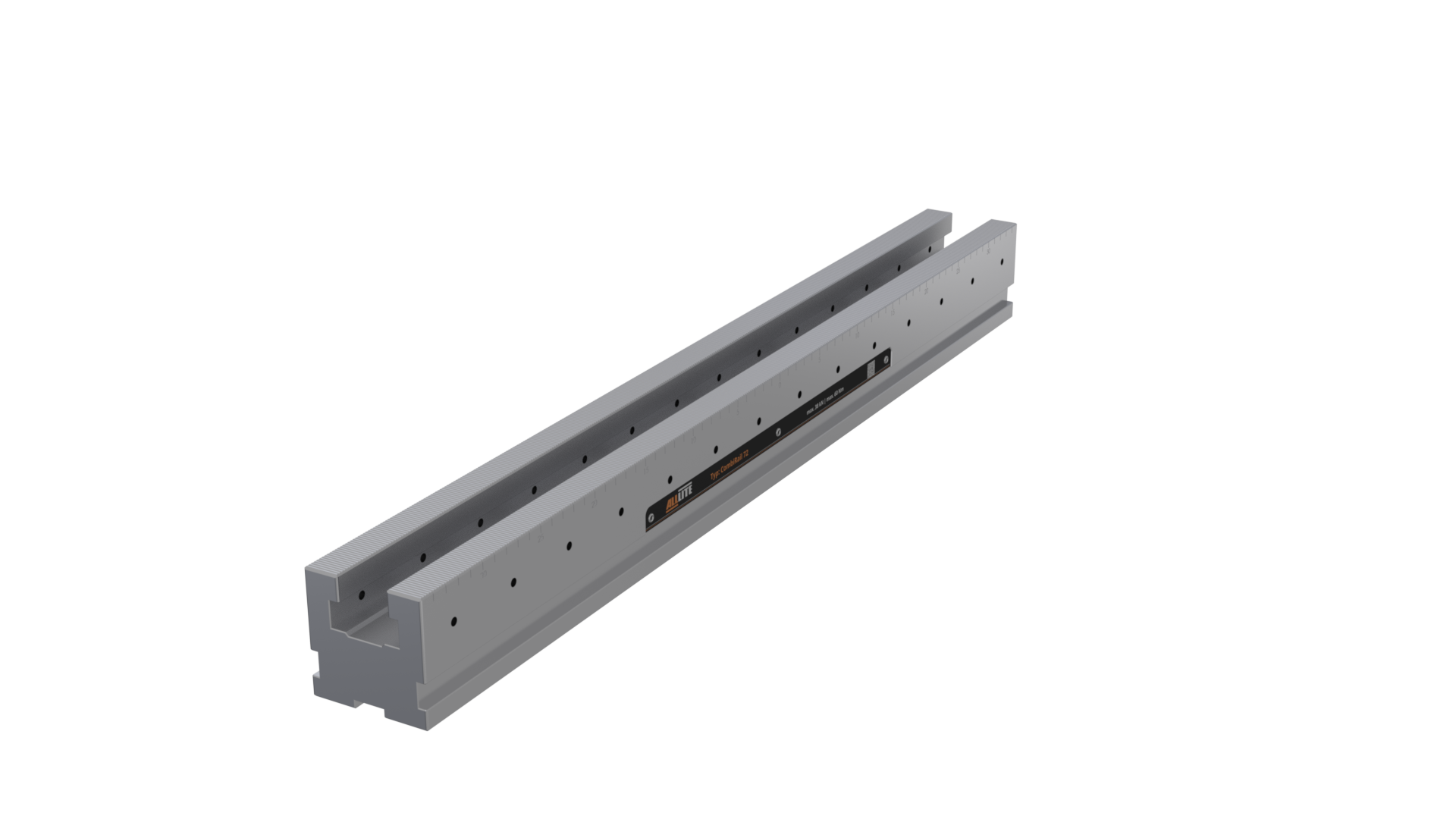

CombiRail 72 L700

Article number: 6921338000755
Alllite
Ideal for the production of higher quantities; Clamping stations can be flexibly adjusted according to the size of the workpieces; Can also be mounted vertically on tower
local_shipping Available
Weight: 20.3 kg
To get the article price and the function for adding the article to the shopping cart, please register or log in
- +
To cart
shopping_cart
help_outline Question on article
Recommend
playlist_add_check Add to notice list (please log in)
More Information arrow_downward
Matching Accessories arrow_downward
More Information arrow_downward
Matching Accessories arrow_downward
Suitable accessories
Extend this product with ALLMATIC accessories. Simply enter the desired number of individual accessory items and add them to the shopping cart.

Fixed jaw b72

Article number: 6921334006031 Backen 72
Please register/login for article price Weight: 1.3 kg
- +

Wedge jaw b72

Article number: 6921334002031 Backen 72
Please register/login for article price Weight: 1.3 kg
- +

Floating jaw b72

Article number: 6921334010031 Backen 72
Please register/login for article price Weight: 1.3 kg
- +

Gripp-strip b72 reversible (pair)

Article number: 6921334010131
Please register/login for article price Weight: 0.8 kg
- +

Workpiece stop mechanical L58 M6

Article number: 6921325650031
Please register/login for article price Weight: 1.5 kg
- +

Dowel screw d16/M16 l=55

Article number: 8006501655000
Please register/login for article price Weight: 0.6 kg
- +
