Product features:

• Extreme accuracy for your machining
• Clamping force can be preset in 6 increments. At most, 1 rotation is required to reach the max. clamping force
• For clamping two identical parts (dimensional differences of up to ± 3 mm are compensated for)
• Preselectable and reproducible clamping forces enable the workpiece position to be repeated within a tolerance of less than 0.01 mm
• Standard with locating holes Ø 25H6 M10 for zero-point clamping systems; Inside micrometre 200mm ± 0.01mm


• Possible zero point clamping bolts

Important:

• Workpieces must be placed in both stations before clamping begins.
• Type 90: drive head with finer clamping force presetting for delicate workpieces (6 increments)

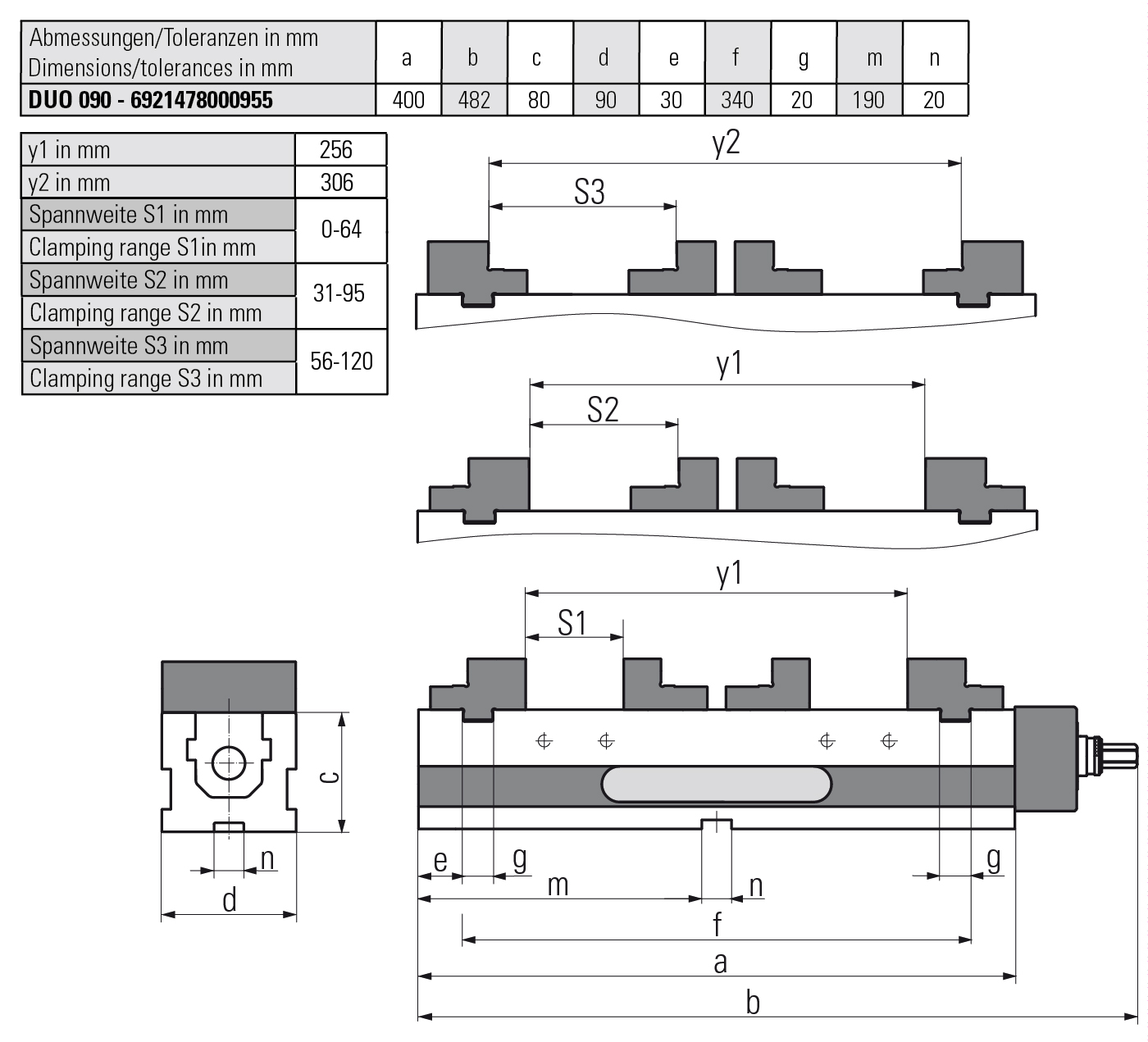

Clamping range S1/mm

0-64

Clamping range S2/mm

31-95

Clamping force increments

6

max. clamping force in kN

28

min. Clamping range/mm

0

max. Clamping range/mm

120

Workpiece

Pre-machined parts

Version

Mechanical

Jaw width/mm

90

Clamping range S3/mm

56-120

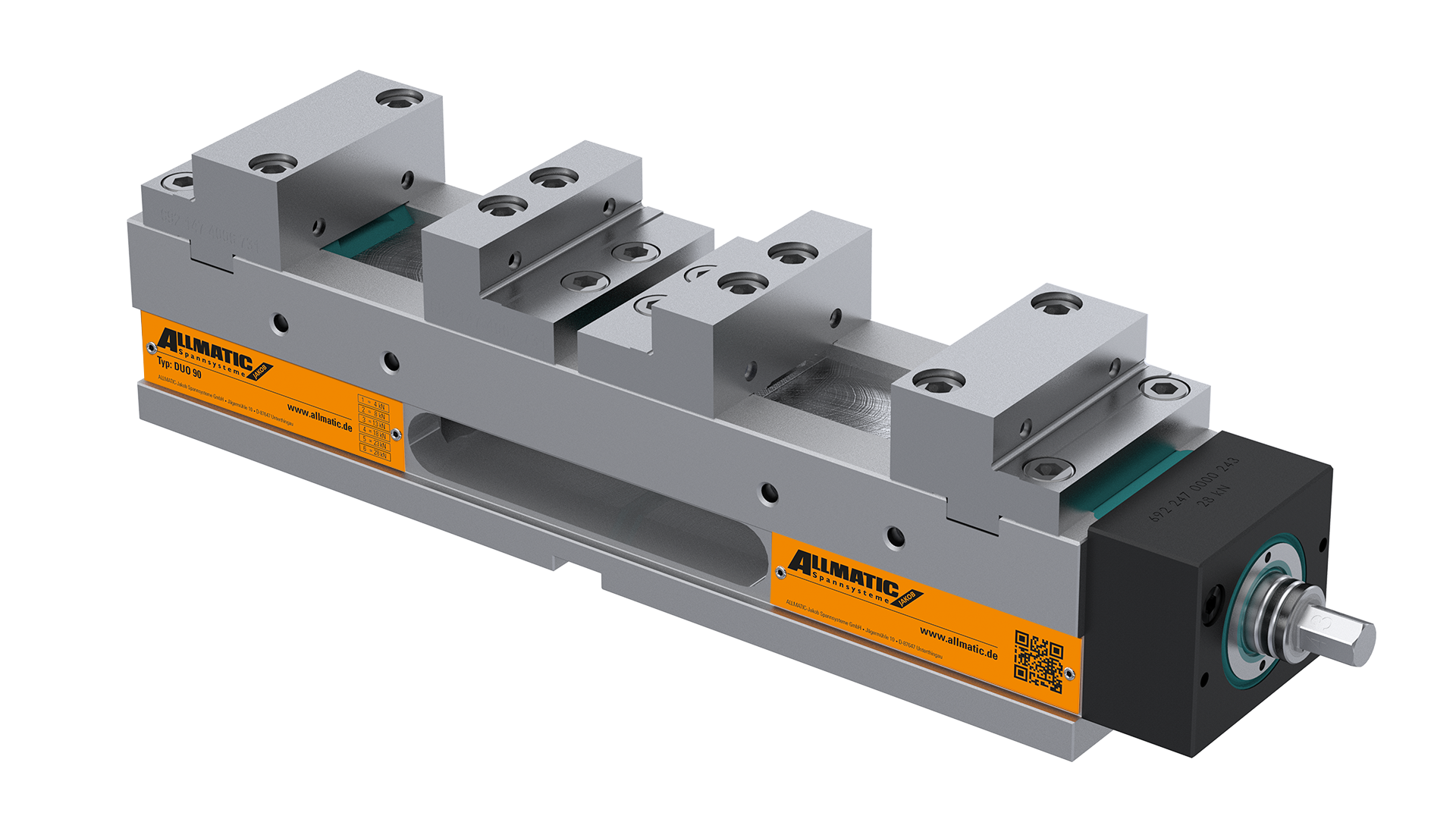

1x Vice DUO 90

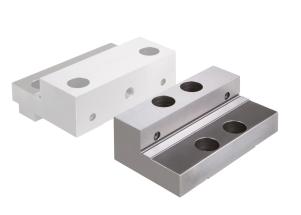

2x Step jaw fix

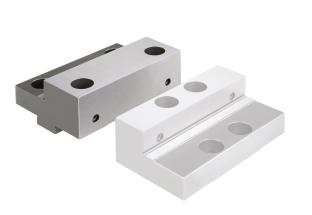

2x Step jaw movable
1x Hand crank

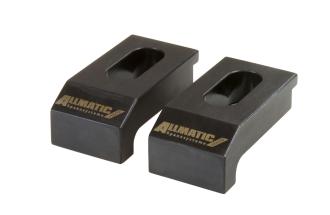

4x Clamping claws
1x Quick-Start-Guide
