Product features:

• Tool-less force setting in 4 steps with a mechanical stop for safe operation, max. clamping force 60 kN

• Constant, reproducible clamping force with mechanical power-assist
• Proven maintenance-free and encapsulated high-pressure spindle, thus minimised cleaning requirements
• Basic body made of GJS-60
• Guideway inductively hardened and ground
• Aligning grooves in the base face
• Lateral boreholes for extension

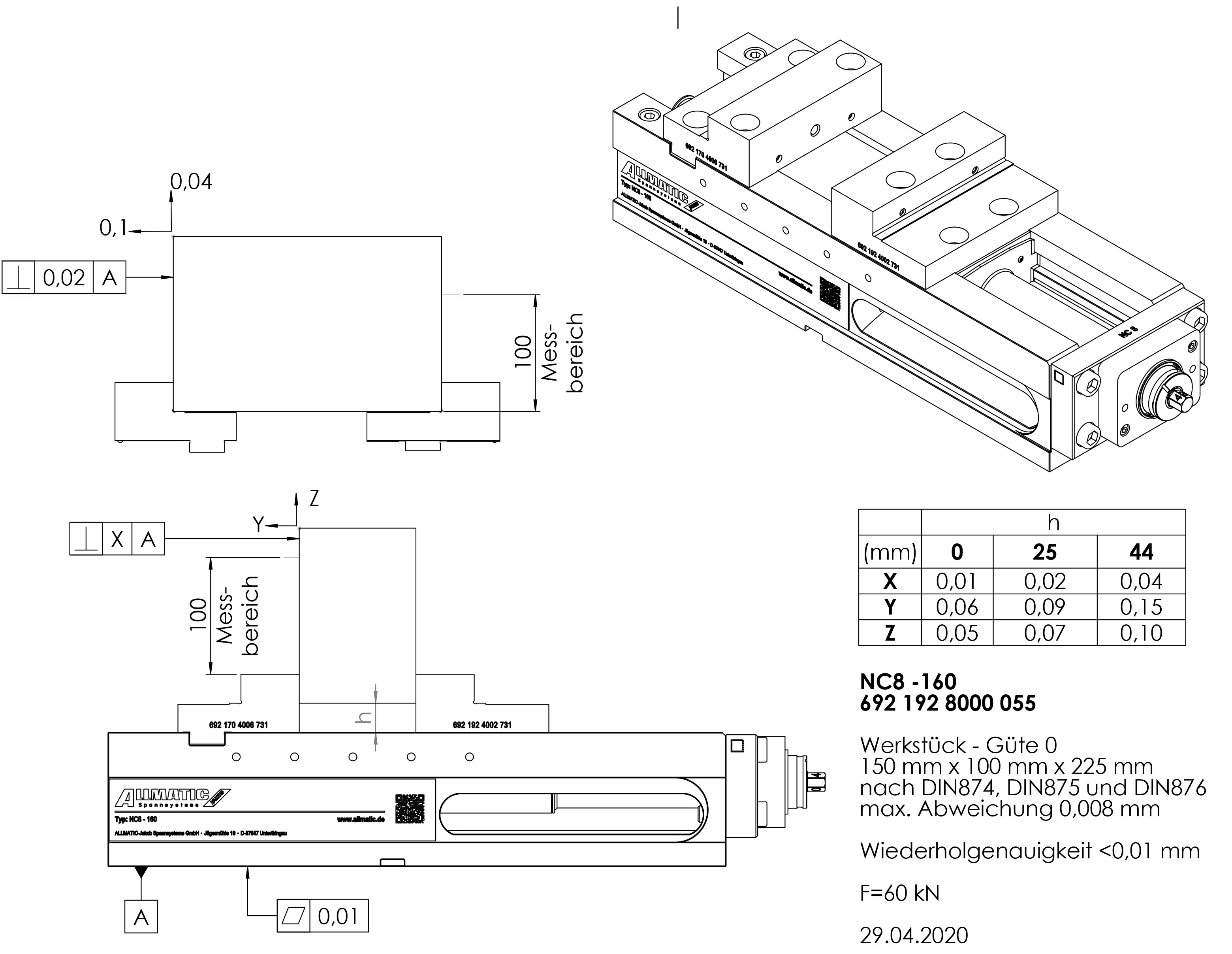

• Evenness of basic body 0.01 mm
• Height of basic body ground -0.02 mm
• Width of base body ground -0.05 mm, therefore can be used laterally
• Quick-change system for add-on jaws and parallels
• Reversible jaws: for min. / max. chuck capacities (0-435 mm) with one pair of jaws
• Fixed jaw, simple programming thanks to constant zero
• Closing and opening of the complete clamping range including clamping process with a hand crank
• The total length is independent of the workpiece size

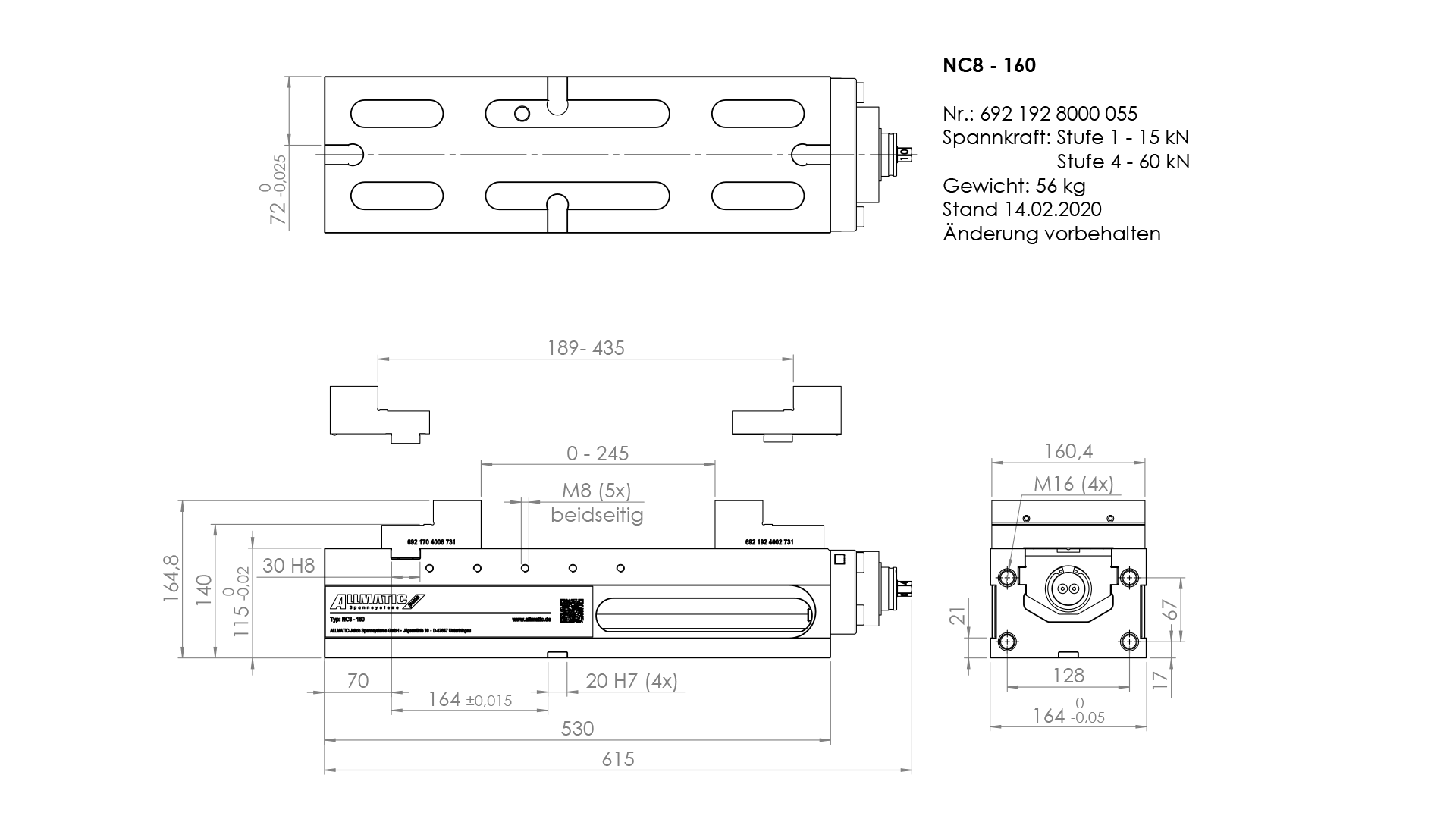

• Dimensions NC8 as for LC/TC
• Jaw interface compatible with LC/TC
• 5 threads per side for lateral workpiece stops M8
• Connection thread for angle drive
• Individual QR code for fast access to technical information, accessories, replacement parts and repair costs

Clamping range S1/mm

0-246

Clamping range S2/mm

189-435

Clamping force increments

4

max. clamping force in kN

60

min. Clamping range/mm

0

Jaw width/mm

160

Workpiece

Pre-machined parts

Version

Mechanical

max. Clamping range/mm

435

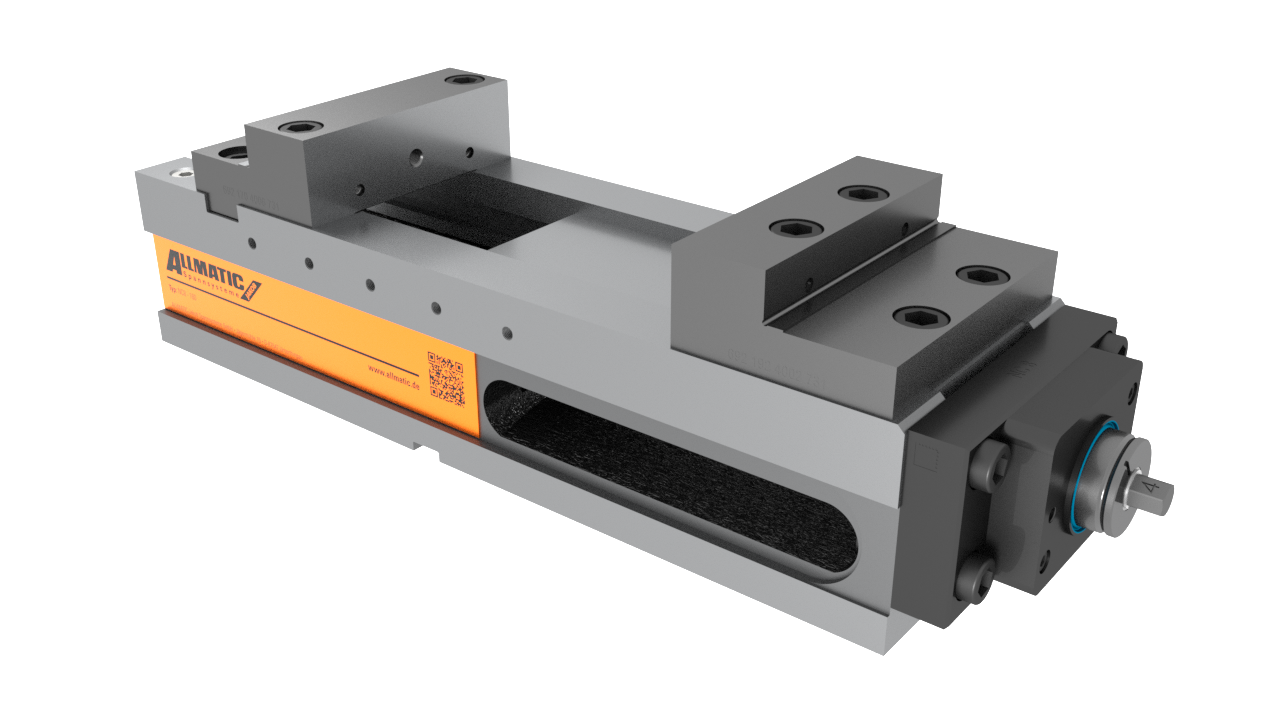

1x Vice NC8 - 160
1x Step jaw fix
1x Step jaw movable
1x Hand crank
4x Side clamps
1x Quick-Start-Guide
