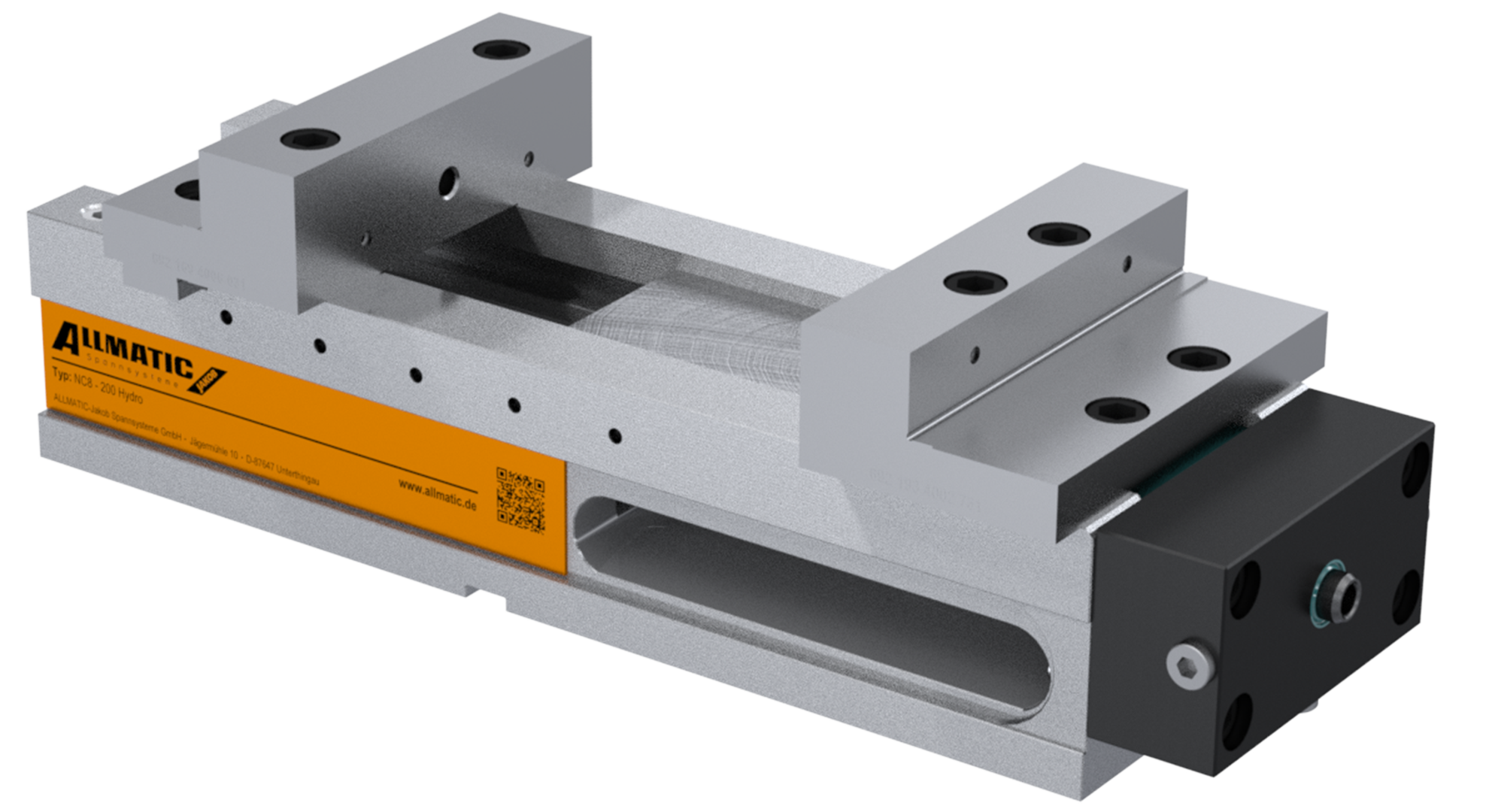

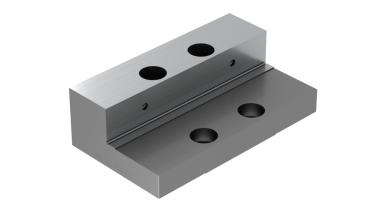

Product featuresmax. clamping force: 60 kNJaw interface compatible with NC8/LC-TC seriesProven maintenance-free and encapsulated high-pressure spindle, thus minimised cleaning requirementsBasic body made of GJS-60Guideway inductively hardened and groundAligning grooves in the base faceLateral boreholes for extensionCan be used laterallyQuick-change system for add-on jaws and stepped stripsReversible jaws: for min. / max. chuck capacities (0-435mm) with one pair of jawsFixed jaw, simple programming thanks to constant zeroThe total length is independent of the workpiece sizeDimensions NC8 as for LC/TC5 threads per side for lateral workpiece stops M8Extreme accuracy for your machiningThe clamping force is generated via the pressure from a hydraulic unit with a hydraulic clamping stroke of up to 4.5 mmVolume for max. clamping stroke 4.5 cm³The clamping force is steplessly adjusted by regulating the hydraulic pressure on the hydraulic unit. A hand crank is provided for coarse adjustment of the clamping rangeThe spindle contains a single-acting hydraulic piston and an additional Belleville spring assemblyIndividual QR code for fast access to technical information, accessories, replacement parts and repair costs

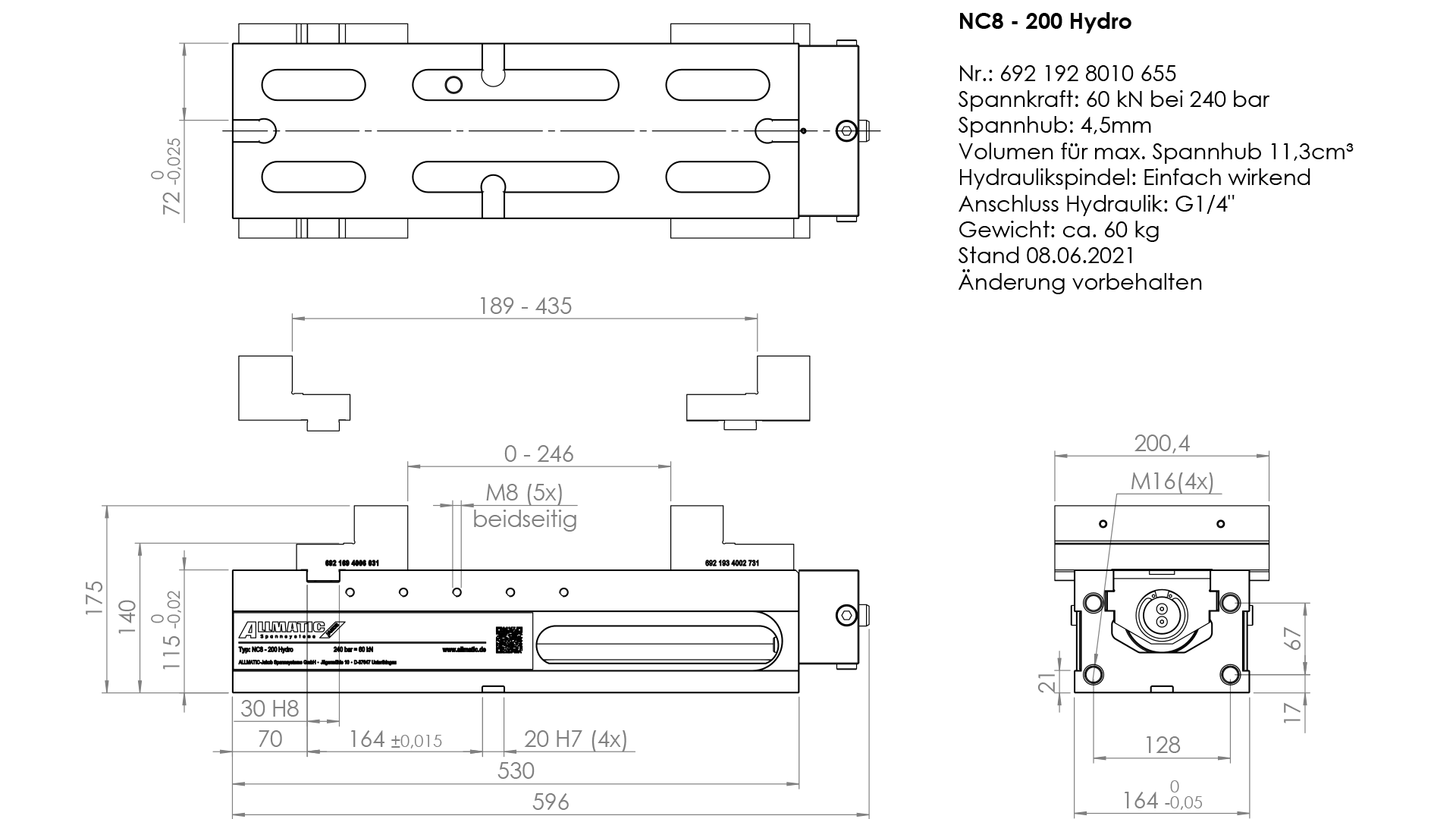

Jaw width/mm 200 Version Hydraulic Workpiece Raw parts, Pre-machined parts max. Clamping range/mm 435 min. Clamping range/mm 0 Clamping range S1/mm 0-246 Clamping range S2/mm 189-435 Hydraulic movement in mm 4,5 max. clamping force in kN 60 At hydr. pressure in bar 240
