Product features:

• Maximum safety:

                • Monitoring of the clamping force during clamping and machining due to integrated, electronic measuring system.
                   Readout directly on display and via wireless transmission to terminal device (via Bluetooth BLE)

                • Encapsulated spindle with force amplifier (IP65). Input of max. 30 Nm for 40 kN clamping force

                • Operation via torque wrench

• Flexible use:

                • All jaws of the Titan2/NC8 series can be used

                • Jaws reversible

                • Unmachined parts in highly varied materials or with complex geometries, can be clamped securely.
                   Different gripp-studs for materials up to approx. 1400 N/mm² strength

                • Quick change for attachment jaws and parallels

                • Titan2 spindle can also be used without monitoring

                • Holes for workpiece stop, angular drive and extension

                • Sides are ground

                • Bottom side with alignment grooves and locating holes Ø 25H6 M10 for zero-point clamping systems, inside micometre 200 mm ± 0,01 mm

• Simple use of the clamping force monitoring:

                • Clamping force can be recorded with all compatible jaws, as the measuring unit is in the spindle

                • Transmission range up to 20 m

                • Long battery life

                • Easy & quick battery change with standard batteries

                • Display robust and splash-proof

                • Operating temperature between 10° C and 40° C

                • Individual QR code for fast access to technical information, accessories, spare parts and service

min. Clamping range/mm

0

Version

Mechanical

Workpiece

Raw parts, Pre-machined parts

max. Clamping range/mm

493

WEEE-Reg.-Nr.

DE 19364721

max. clamping force in kN

40

Weight (net) in kg

52

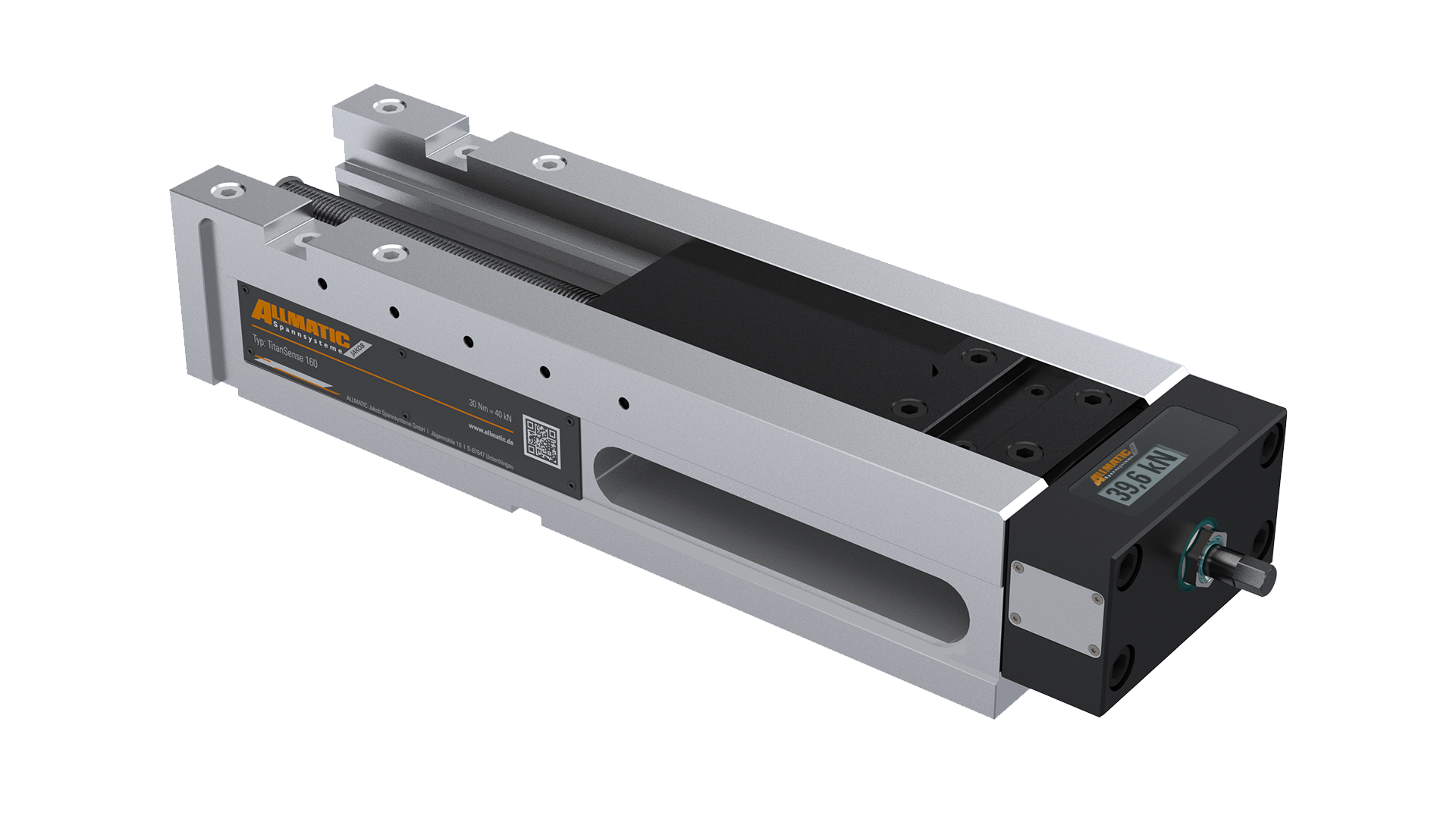

• 1x high-pressure vice TitanSense without jaws

• 4x Side clamps

• 1x Socket wrench insert 14 – 12kt – 3/8“

• 2x Transport plate

• 2x Flat head screw w. J6kt 8x12

• 1x Quick-Start-Guide
