• Max. clamping force: 40 kN
• 2 clamping stations
• Mechanical power amplifier
• For clamping two identical parts (dimensional differences of up to ± 3 mm are compensated for)
• Preselectable and reproducible clamping forces enable the workpiece position to be repeated within a tolerance < 0.01 mm
• Workpieces must be placed in both stations before clamping
• Individual QR code for fast access to technical information, accessories, replacement parts and service


Workpiece

Pre-machined parts

min. Clamping range/mm

0

max. Clamping range/mm

171

Version

Mechanical

max. clamping force in kN

40

Weight (net) in kg

49

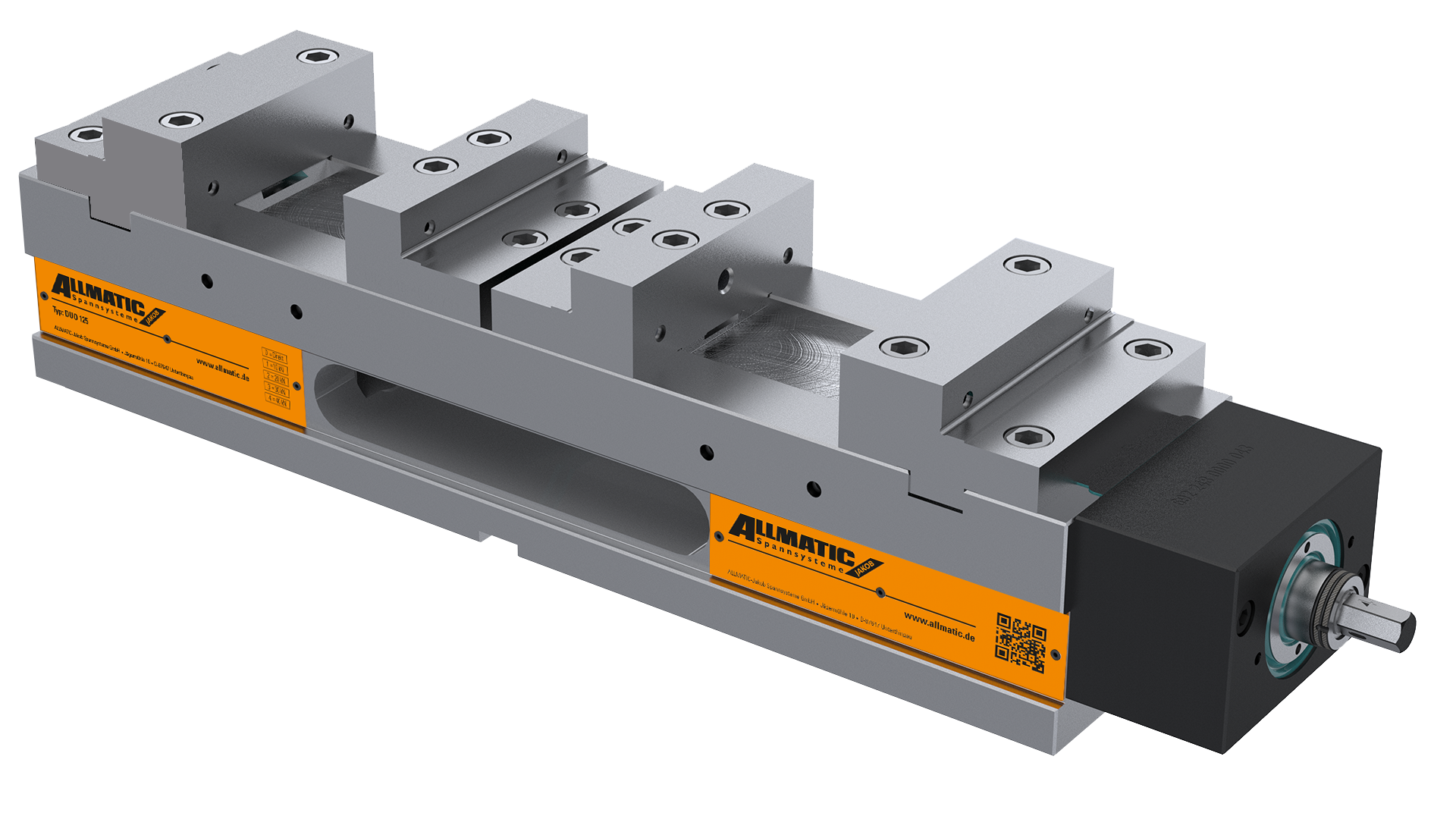

• 1x high-pressure vice Duo 125

• 2x Step jaw fix

• 2x Step jaw movable

• 1x hand crank

• 4x side clamps

• 2x Transport plate

• 1x Quick-Start-Guide
