Product features:

• Mechanical stop for safe opeation, max. clamping force 60 kN
• Constant, reproducible clamping force with mechanical power-assist
• Proven maintenance-free and encapsulated high-pressure spindle, thus minimised cleaning requirements
• Basic body made of GJS-60
• Guideway inductively hardened and ground
• Aligning grooves in the base face

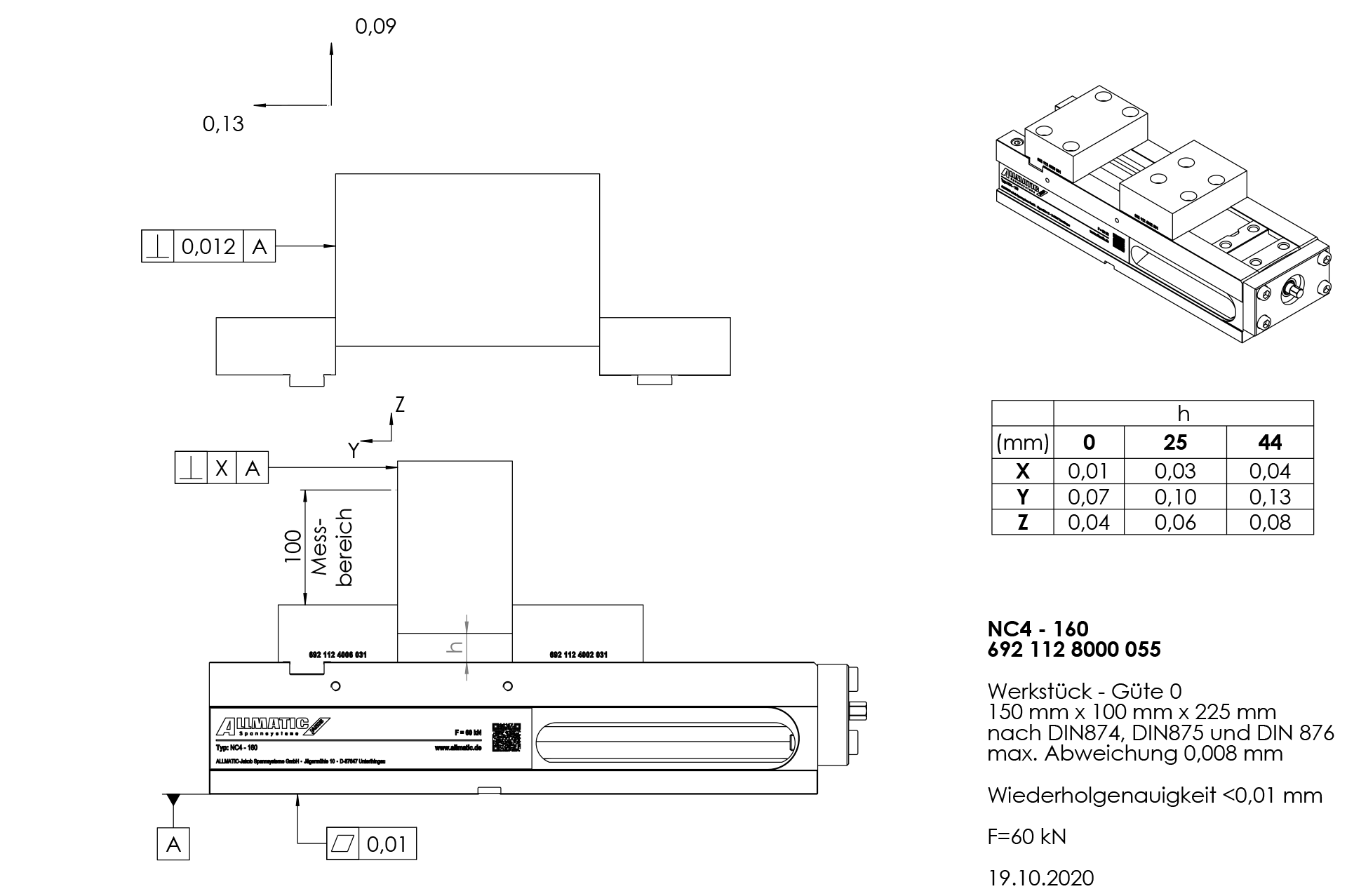

• Evenness of basic body 0.01mm
• Height of basic body ground -0.02mm
• Width of basic body fine milled

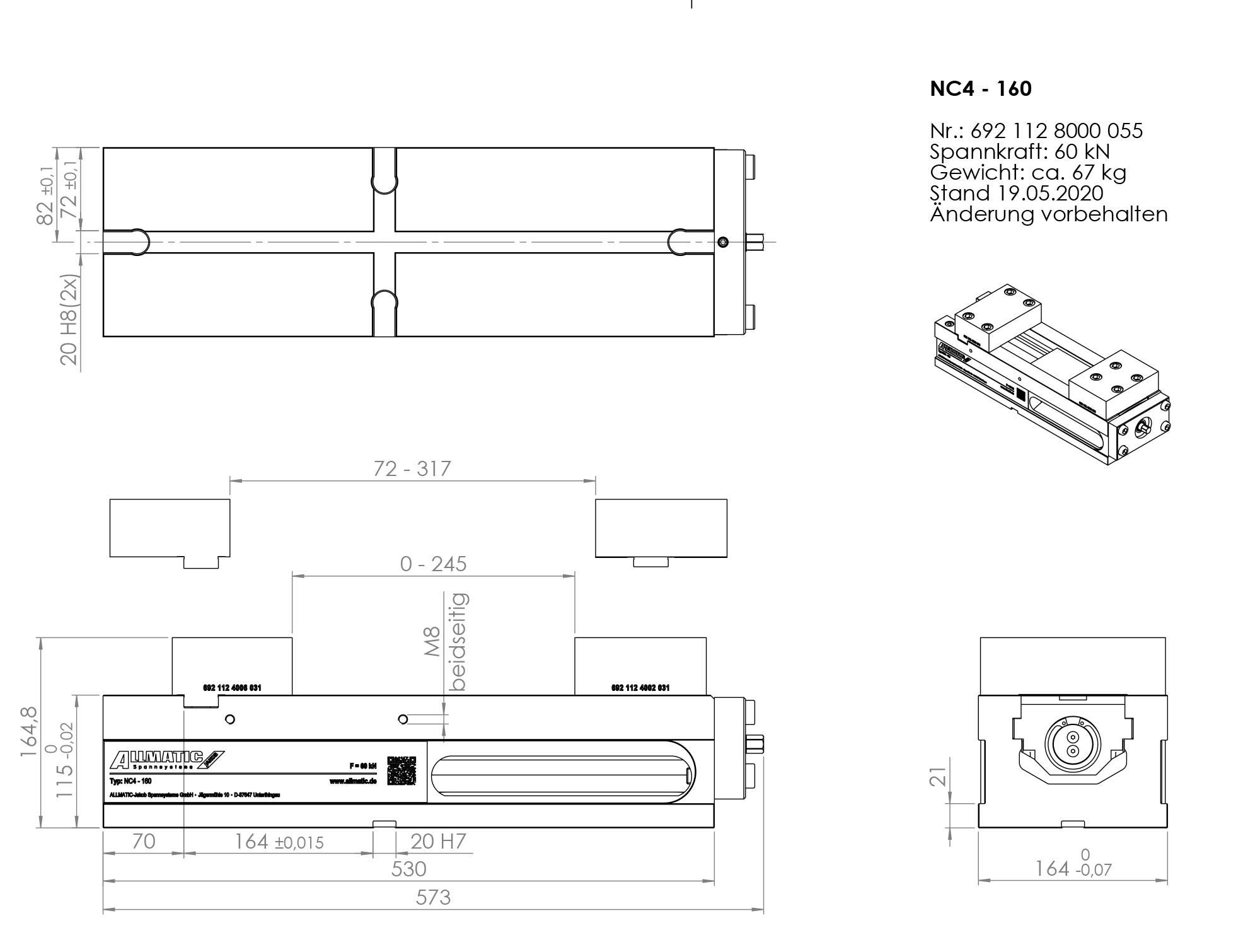

• Reversible jaws: for min. / max. chuck capacities (0-245mm, 72-317mm) with one pair of jaw
• Flexible base jaws - milling a step extends the clamping range and they can also be used as mould jaws for moulded parts and thus for OP20
• Fixed jaw, simple programming thanks to constant zero
• Closing and opening of the complete clamping range including clamping process with a hand crank
• The total length is independent of the workpiece size
• Dimensions NC4 as for NC8, LC and TC 160, thus placing them side by side possible
• Jaw interface compatible with NC8 and LC/TC
• 2 thread per side for lateral workpiece stops M8
• Individual QR code for fast access to technical information, accessories, replacement parts and repair costs

Clamping range S1/mm

0 - 182

Clamping range S2/mm

72 - 317

max. clamping force in kN

40

max. Clamping range/mm

434

Version

Mechanical

Workpiece

Pre-machined parts

min. Clamping range/mm

0

Jaw width/mm

160

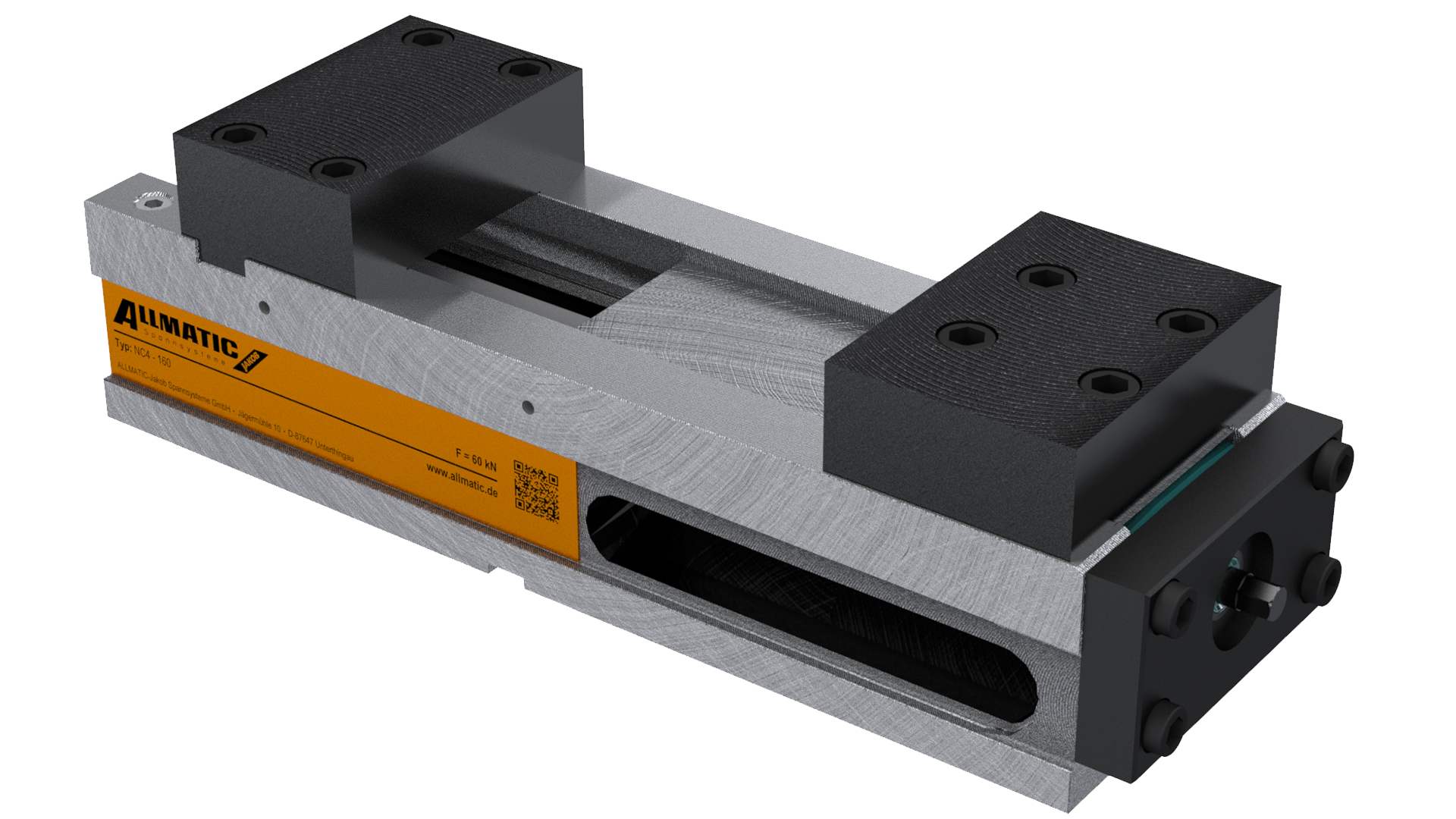

1x High-pressure vice with soft block jaws
1x Hand crank
1x Quick-Start-Guide
