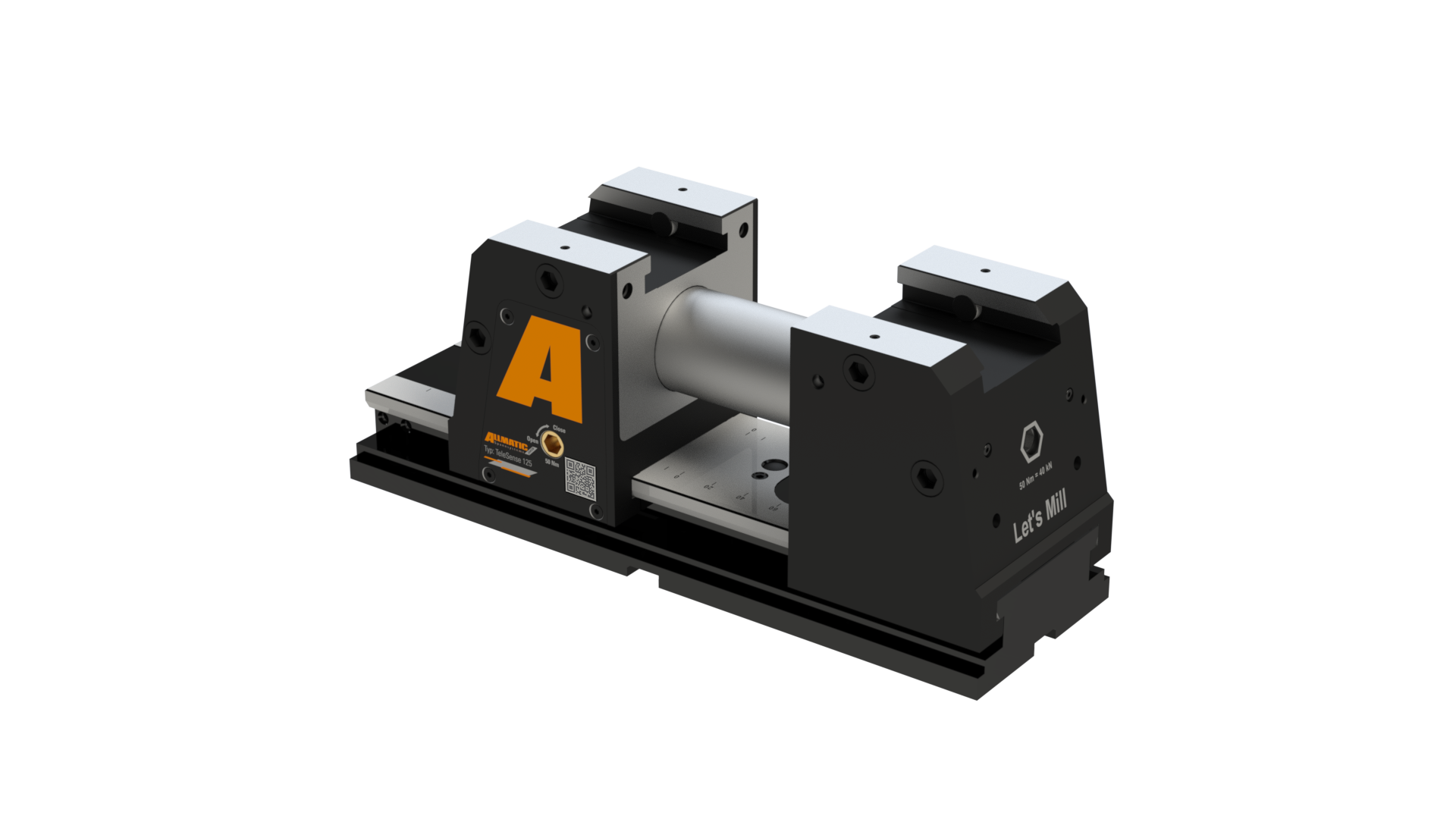

Product features:
- Clamping of raw and pre-machined parts (parallel, round and irregular parts) also with gripp and pull-down clamping. Reliable clamping without pre-stamping
- Maximum flexibility:

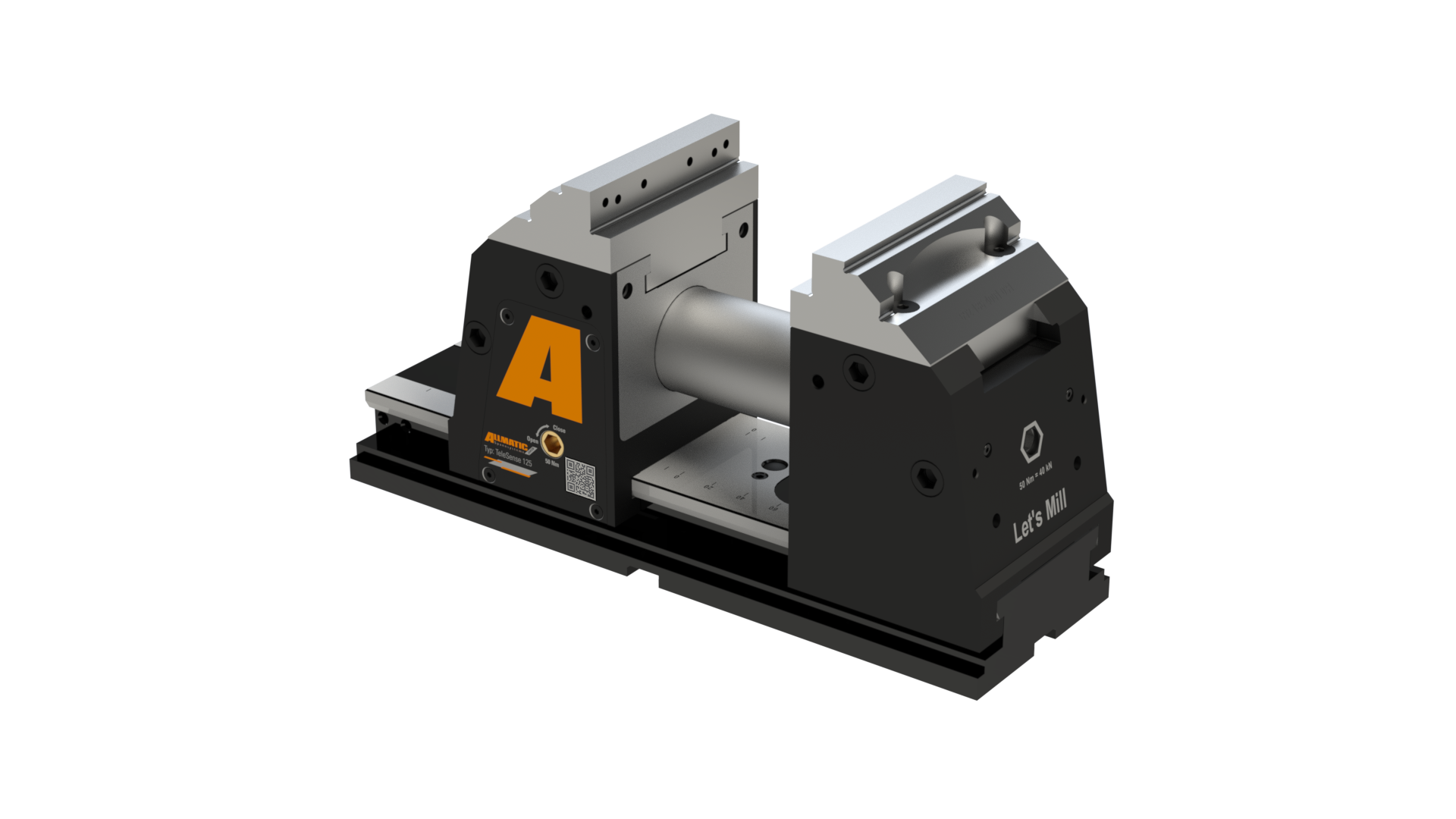

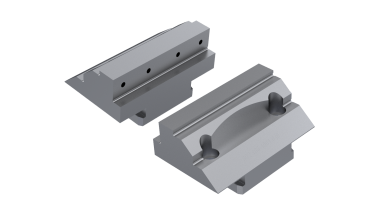

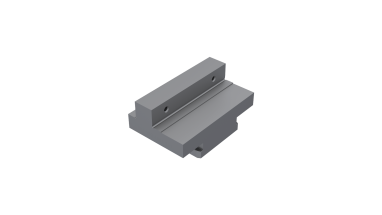

• Universal quick change jaw for a variety of different setups - thus reducing setup time and less force is required

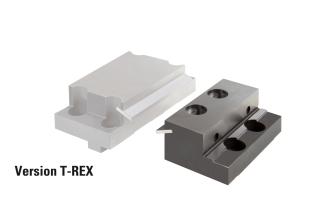

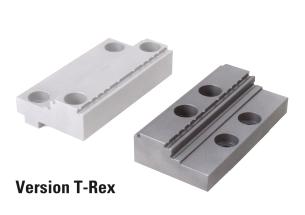

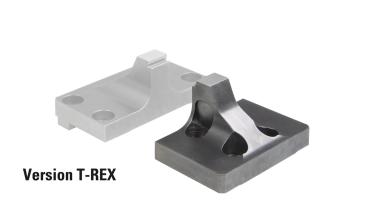

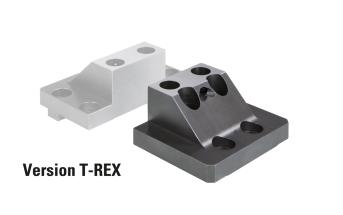

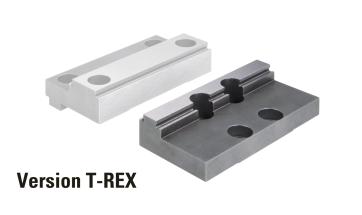

• Compatible to the movable jaws of CentroGripp, T-Rex, NC8 and Titan 2 (adapter available)

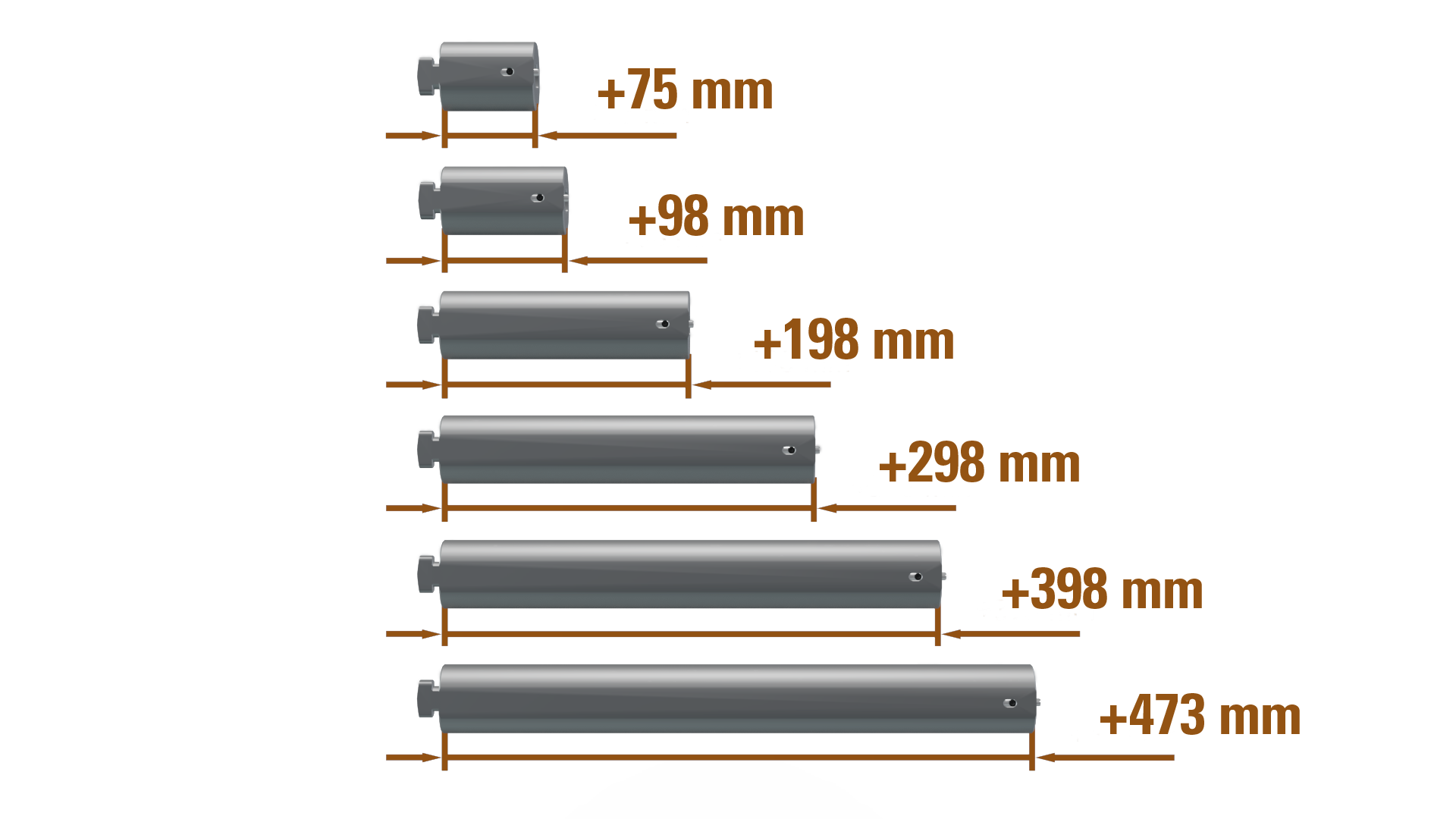

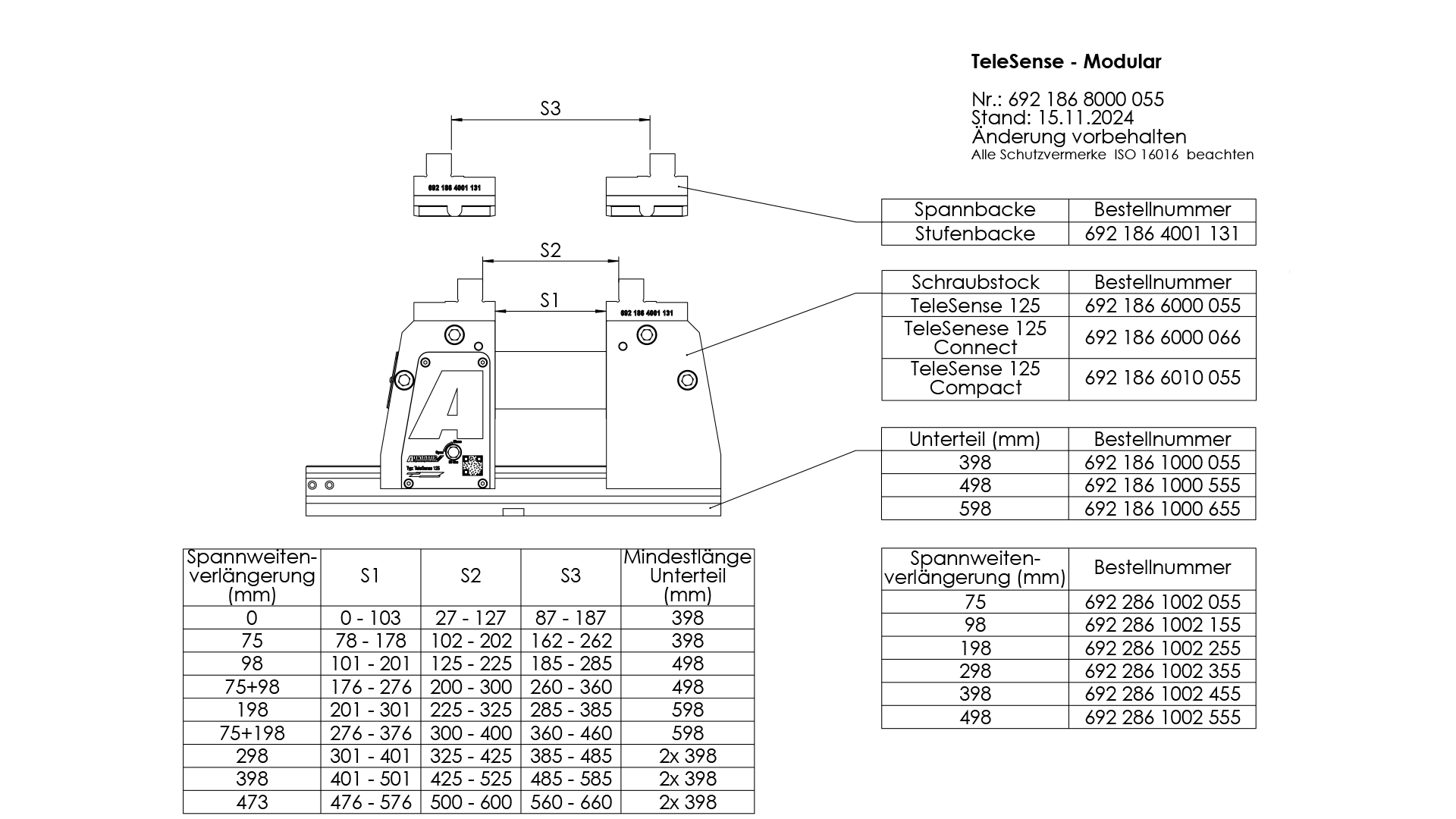

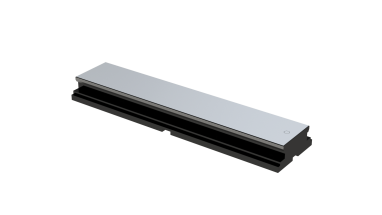

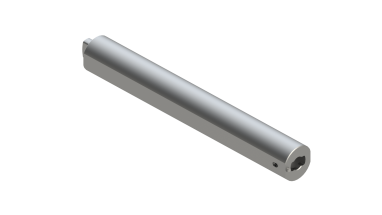

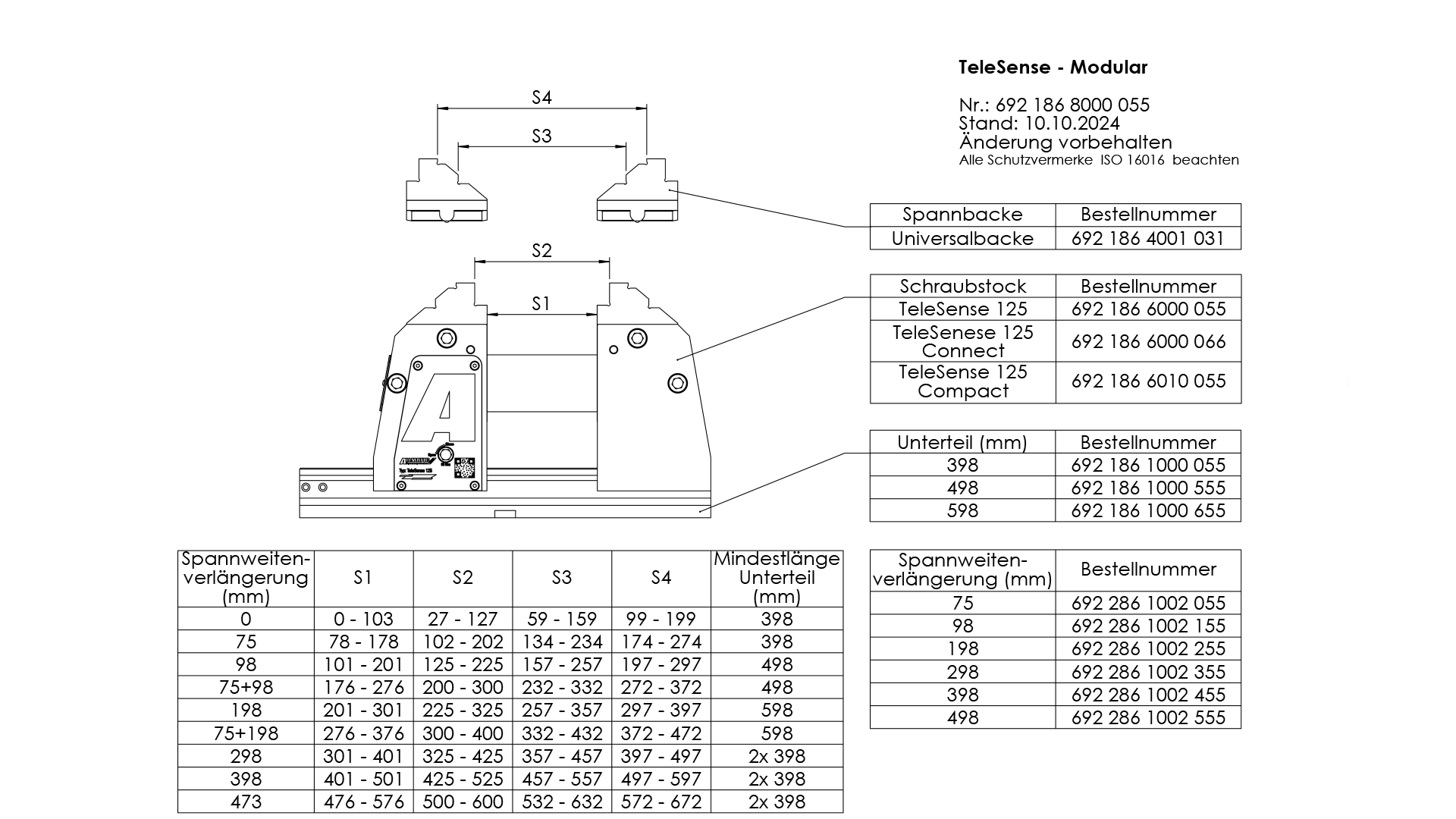

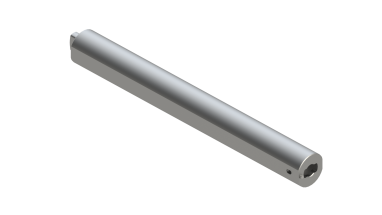

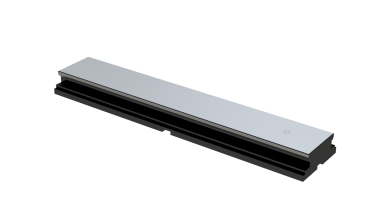

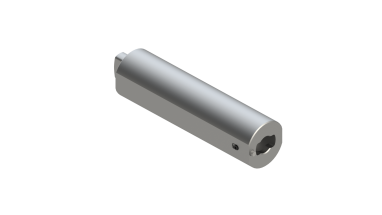

• Extension element for enlarging clamping width (up to 473 mm)
• Moving of both jaw supports, fixing one jaw side

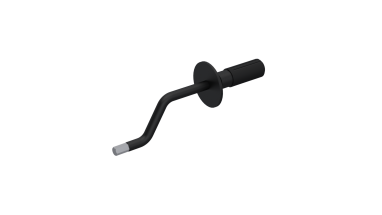

• Only one tool due to uniform wrench size (10) and identical torque for force adjustment and locking
• 4 threads for workpiece stop (M8)

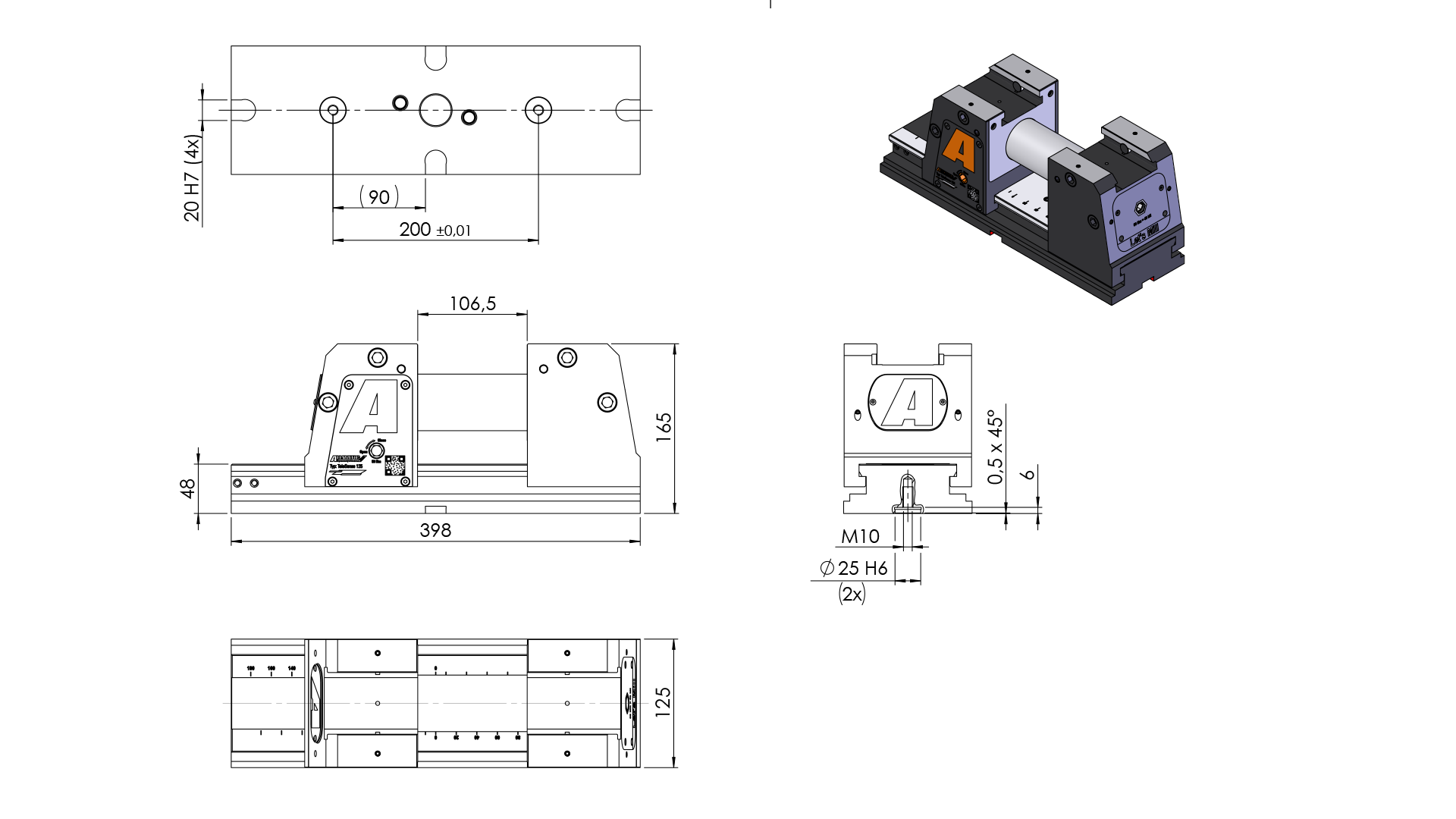

- Standard with locating holes Ø 25H6 M10 for zero-point clamping systems; inside micrometre 200 mm ± 0,01 mm
- Individual QR code for fast access to technical information, accessories, spare parts and service
- We recommend 6 side clmaps for securing on the machine table
